Description

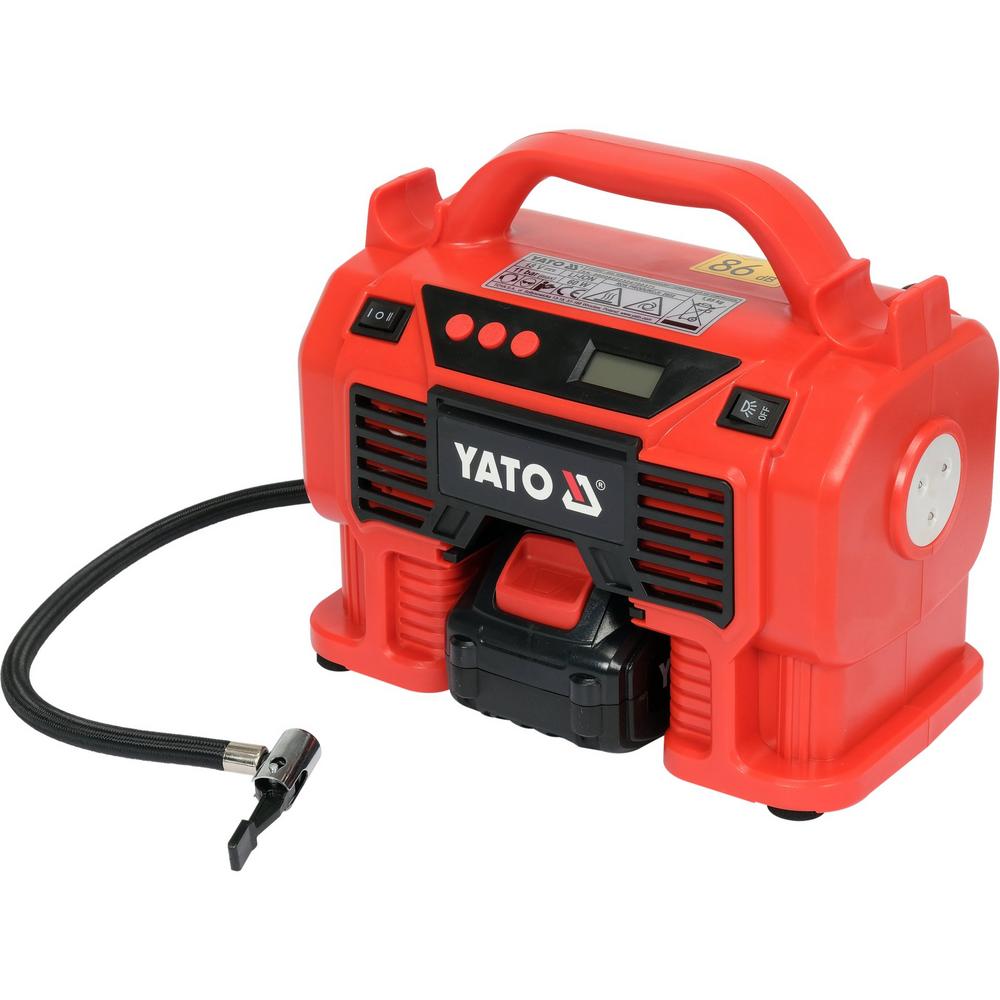

Yato cordless compressor 11 bar 3 Ah set (YT-23247) includes an 18 V cordless compressor, a 3 Ah Li-Ion battery and a charger. The compressor is designed for inflating tyres, balls, mattresses and other inflatable items. The maximum pressure is 11 bar (160 PSI, 1.1 MPa) and the inflation capacity 12 l/min. The compressor runs on the battery in the set or from a vehicle’s 12 V socket, and charging the battery takes about 1.5 hours.

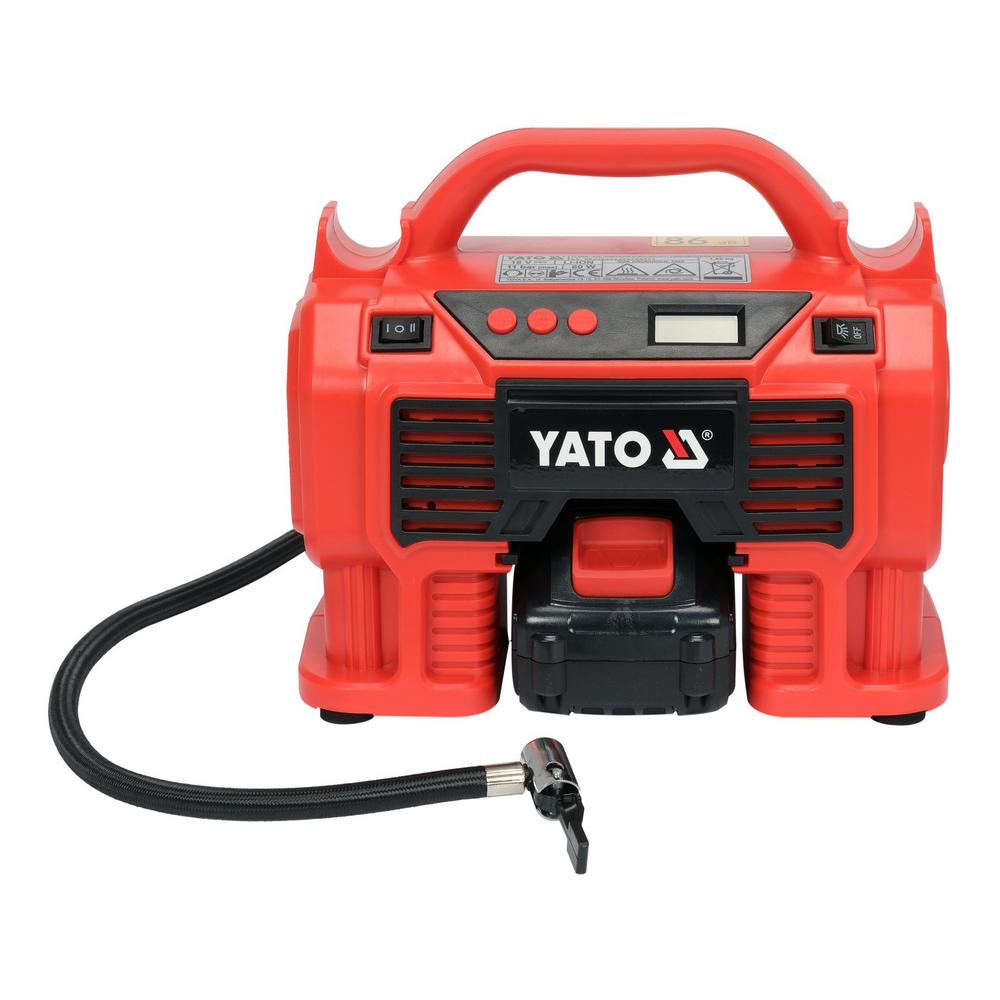

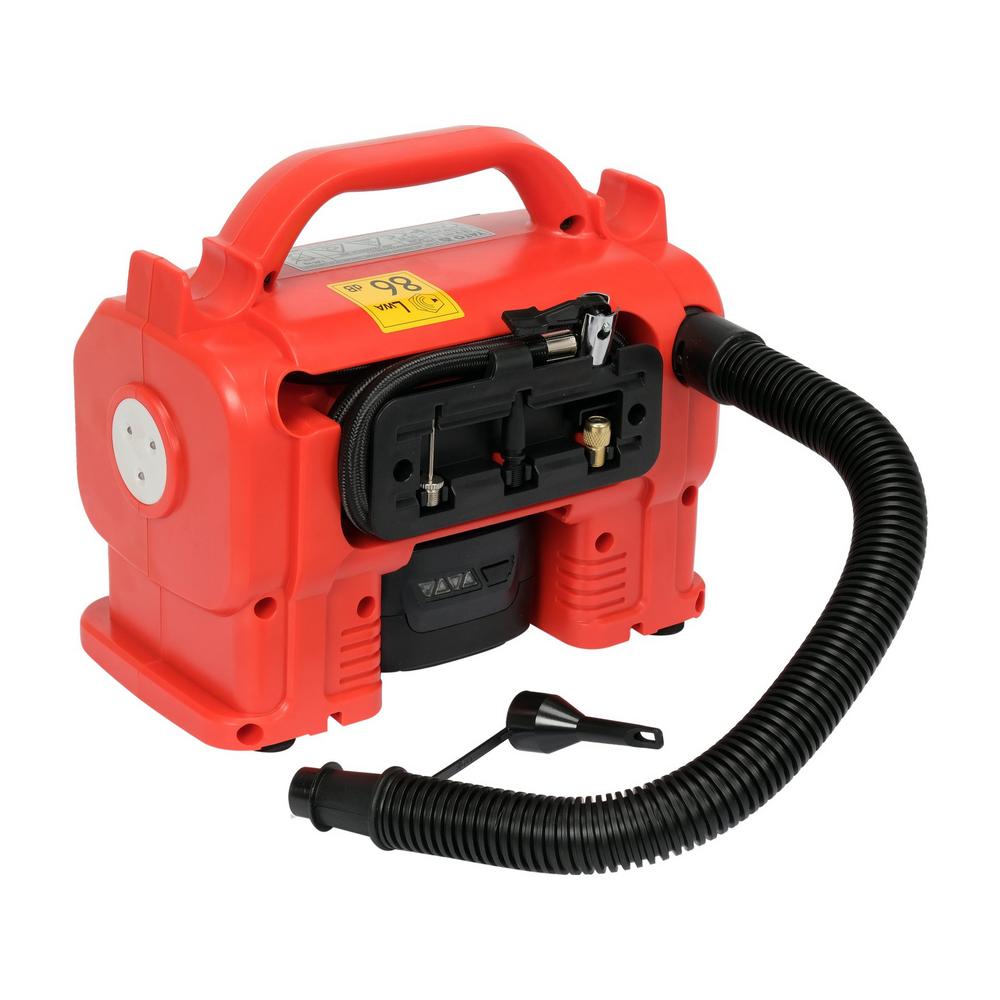

The compressor has two operating modes. In high-pressure mode, the fixed high-pressure hose is used to inflate tyres and balls, and the pressure set on the LCD display stops inflation automatically. In high-volume mode, a separate thick hose is used to inflate items that need a large volume of air, such as mattresses, inflatable boats and pool toys, and the same hose can also be used to deflate them.

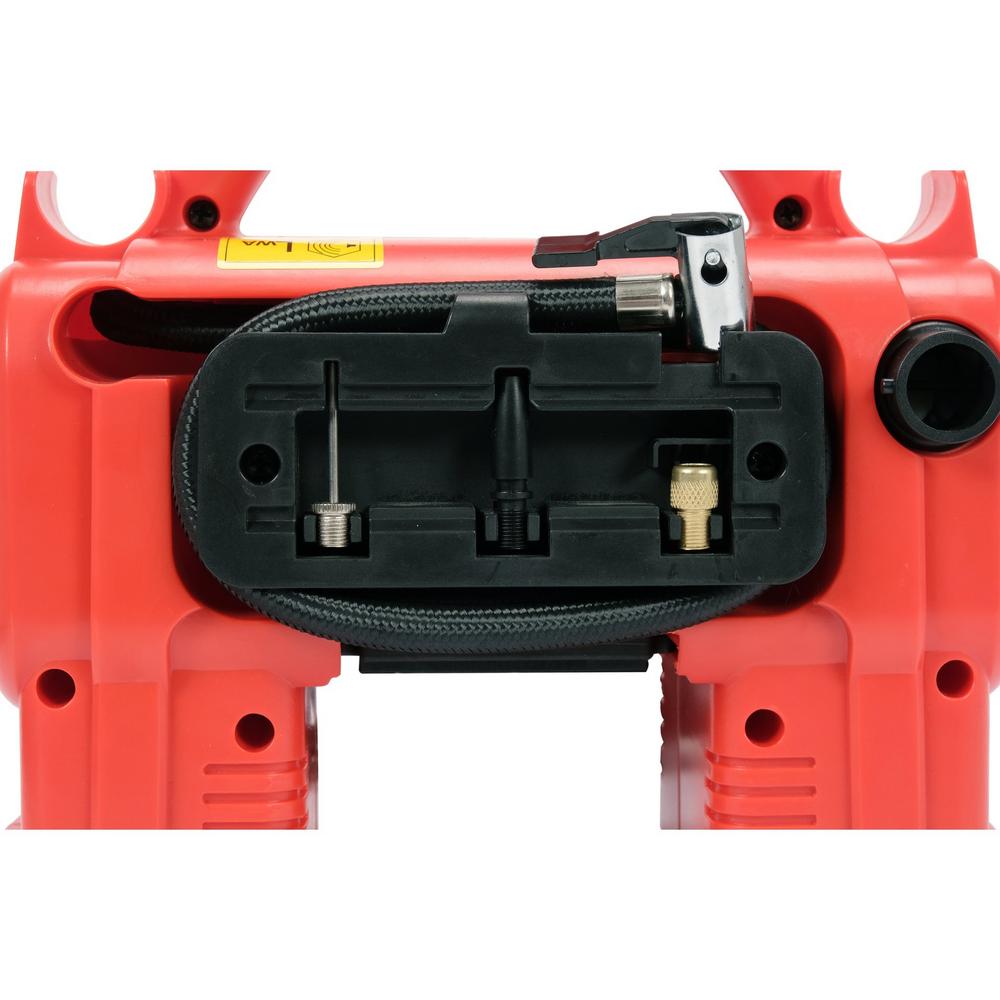

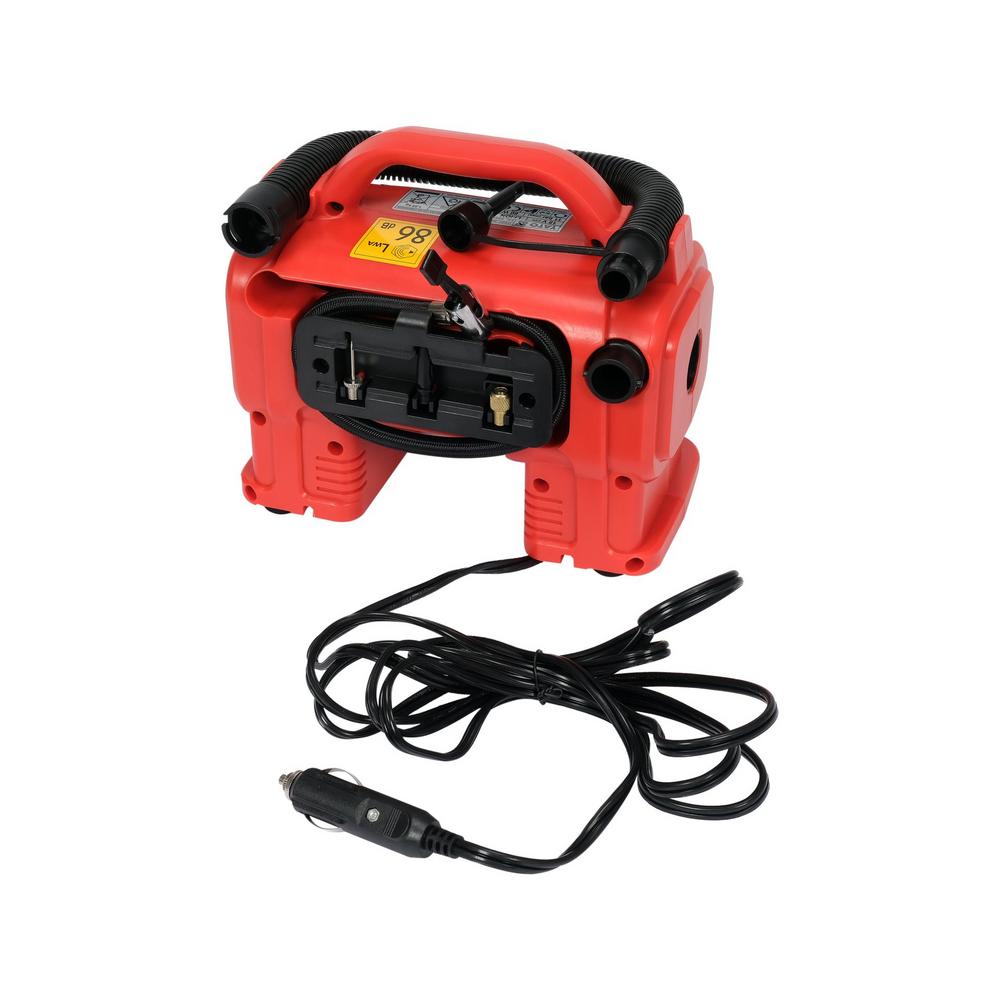

The pressure is shown in PSI, bar or kPa, and the target pressure is set with the “+” and “-” buttons. The inflation tips are stored in the accessory compartment in the housing, there is an LED lighton the side of the housing, and the 12 V power cord is stored in the base of the housing. The rated power is 60 W.
The compressor weighs 1.65 kg without the battery and is carried by the handle on top. The operating temperature is +5…+40 °C and the relative humidity at most 80%; the IP rating is IPX0. The noise level is LpA 71.2 dB(A) and LwA 82.2 dB(A).
Uses and suitability:
The Yato cordless compressor 11 bar 3 Ah is designed for inflating and deflating on the move and on sites without a compressed air network.
- Vehicle tyres: Checking and inflating car and trailer tyre pressure; according to the manufacturer, inflating a car tyre takes about 3–4 minutes depending on the size. Power from either the battery or the car’s 12 V socket.
- Machine and wheelbarrow tyres: Topping up the tyres of site wheelbarrows and machines; according to the manufacturer, the rear tyre of an excavator or tractor (26″ rim, 2.5 bar) inflates in about 15 minutes.
- Bicycles, prams and balls: The narrow tip for bicycle valves and the needle for balls.
- Mattresses and leisure equipment: Inflating and deflating air mattresses, inflatable boats and pool toys in high-volume mode.
The battery and charger in the set belong to the Yato 18 V battery system; a suitable extra battery is the Yato 18V Li-Ion battery. A lighter model in the same range is the Yato cordless compressor 18V + 2.0 AH battery and charger set.
Package contents:
- Yato cordless compressor 18 V, fixed high-pressure hose and 12 V power cord
- Li-Ion battery 18 V 3 Ah
- Charger
- High-volume hose
- Inflation tips, 4 pcs (e.g. balls and mattresses)
- Instruction manual
Features:
- Automatic stop: Inflation stops when the set pressure is reached (high-pressure mode).
- Two operating modes: High-pressure mode for tyres and balls, high-volume mode for mattresses and inflatable boats.
- Deflation: In high-volume mode, air can be pumped out of inflated items.
- LCD display: Pressure in PSI, bar or kPa; target pressure with the “+” and “-” buttons.
- Two power sources: Yato 18 V Li-Ion battery or a vehicle’s 12 V socket.

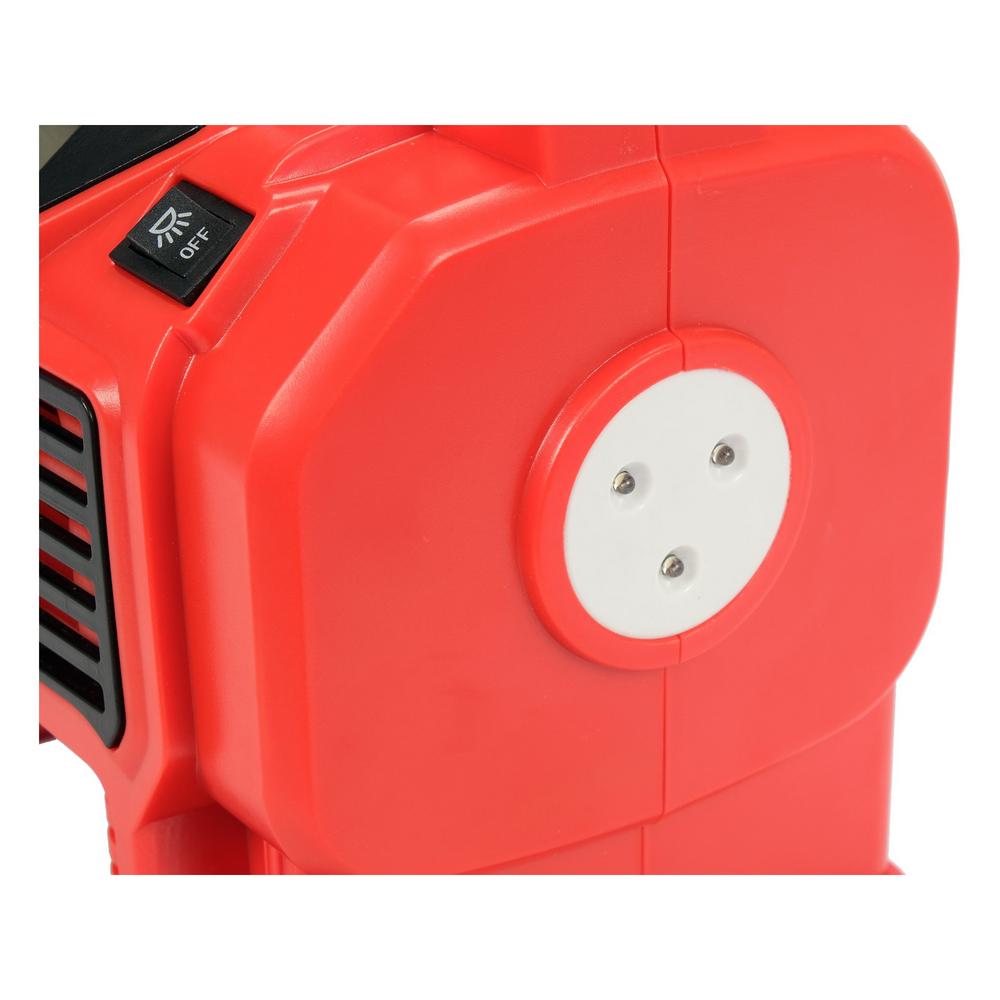

- LED light: On the side of the housing, available in battery operation.
- Accessory compartment and handle: The tips are carried in the housing, and the unit is carried by the handle.
- Safety valve: The compressor has a safety valve that must not be adjusted or modified.
Technical specifications:
- Functions: light, inflation, deflation of inflated items.
- Inflation capacity: 12 l/min.
- Maximum pressure: 1.1 MPa / 11 bar / 160 PSI.
- Voltage: 18 V DC.
- Battery type: Li-Ion (Yato 18 V).
- Battery capacity: 3000 mAh (3 Ah).
- Batteries included: 1.
- Charger included: yes.
- Charging time: 1.5 h.
- Battery charge level indicator: yes.
- Charger input: 220–240 V~, 50/60 Hz, 60 W.
- Charger output: 21 V DC, 2.4 A.
- Power sources: Yato 18 V battery or a vehicle’s 12 V socket.
- Rated power: 60 W.
- Carrying handle: yes.
- Display: LCD.
- Work light: yes.
- IP rating: IPX0.
- Sound pressure level LpA: 71.2 ± 3.0 dB(A).
- Sound power level LwA: 82.2 ± 3.0 dB(A); guaranteed sound power level 92 dB.
- Vibration: 9.75 ± 1.5 m/s².
- Weight: 1.65 kg (without battery).
- Operating conditions: +5…+40 °C, relative humidity at most 80%.
- Compatible batteries: Yato 18 V Li-Ion YT-828461 (2 Ah), YT-828462 (3 Ah), YT-828463 (4 Ah), YT-828464 (6 Ah), YT-828465 (9 Ah).
- Compatible chargers: Yato YT-828498, YT-828499, YT-828500, YT-828501, YT-828502.
- Standards: EN 62841-1, EN 1012-1, EN IEC 55014-1, EN IEC 55014-2, EN 50498.
Yato cordless compressor 11 bar 3 Ah user instructions:
Charging the battery: The battery is supplied uncharged. Slide the battery into the charger and plug the charger into a socket: the red indicator light is on during charging, and green indicates a full battery. Charging takes about 1.5 hours. Charge only indoors in a dry place under supervision.
Preparation: Check that the start switch is in the middle position O. In high-pressure mode, unwind the fixed hose from the back of the housing, place the required tip on the valve with the lever up and lock it by lowering the lever. In high-volume mode, connect the thick hose to the port at the back of the housing and turn it to lock.

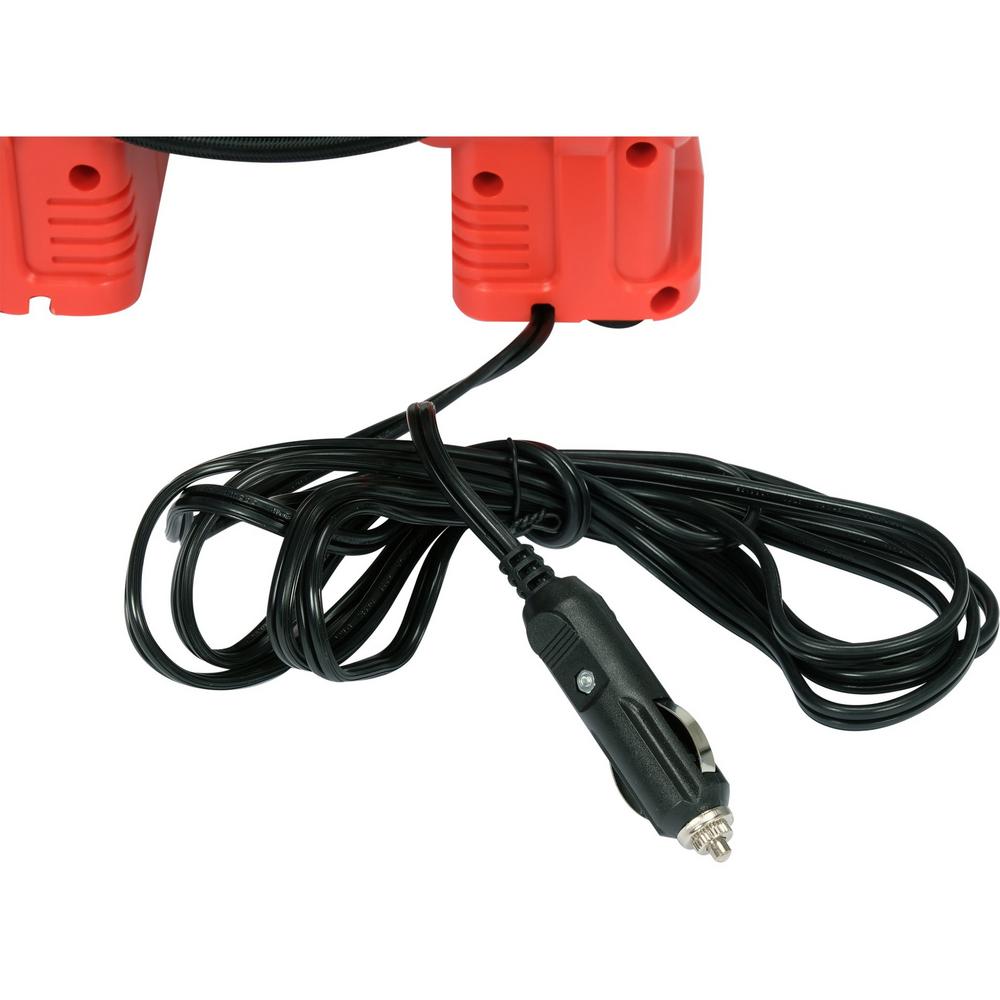

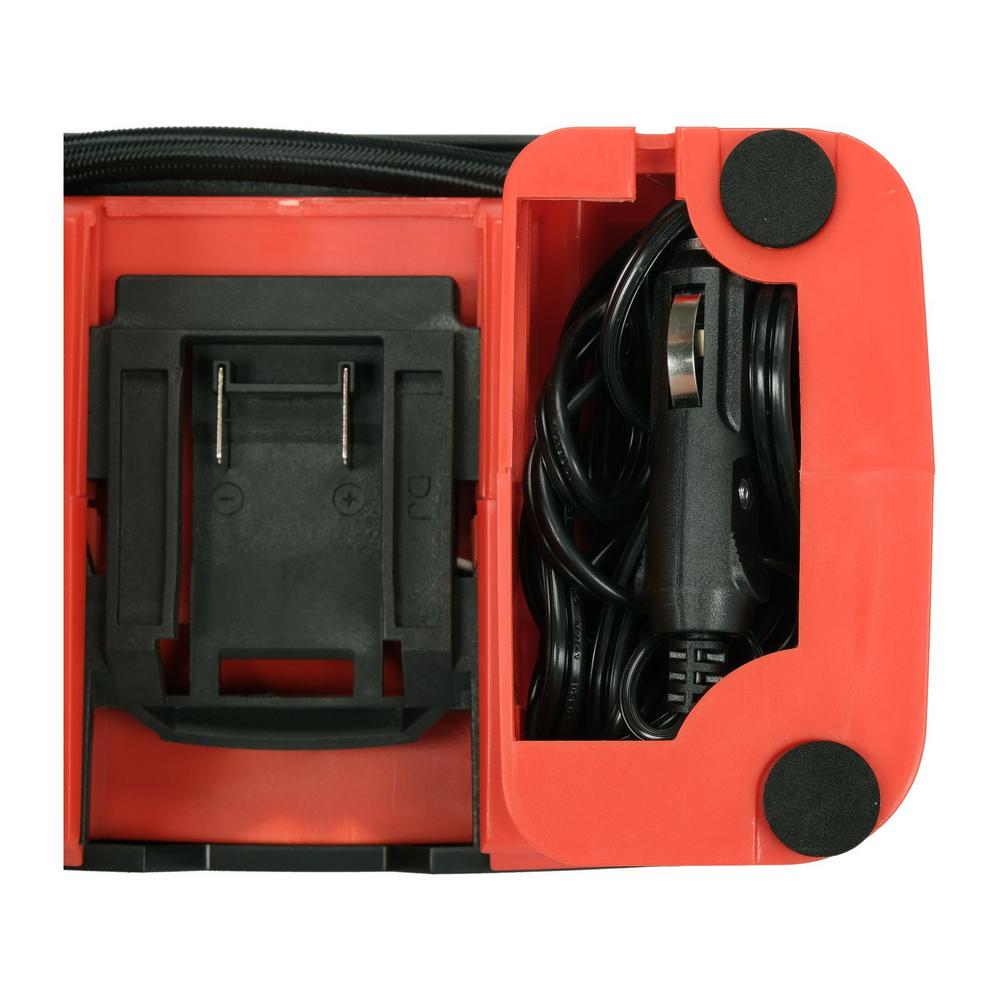

Power source: Slide a Yato 18 V battery into the battery slot until it clicks. For vehicle use, turn the power source selector to the light symbol, unwind the 12 V cord completely and plug it into the car socket.

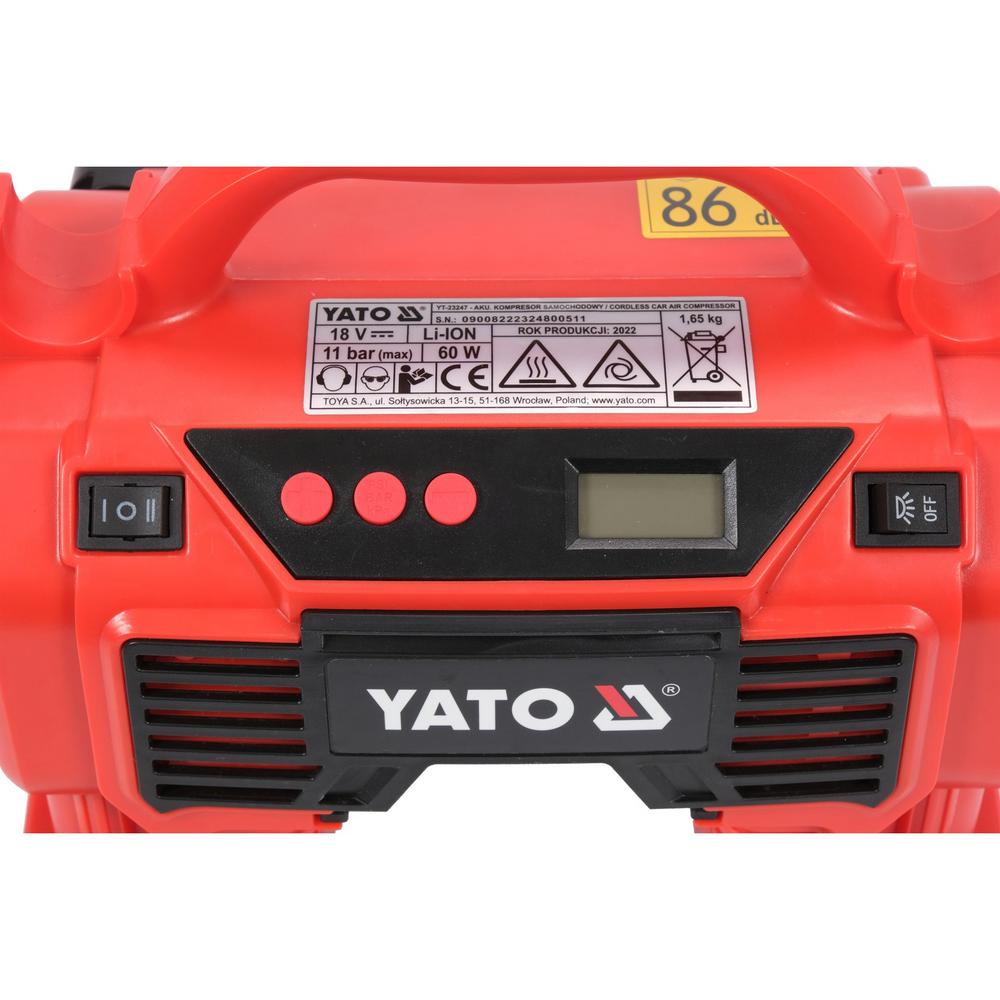

Inflation: Select the pressure unit with the PSI/BAR/kPa button and set the target pressure with the “+” and “-” buttons; the value flashes after about 3 seconds. Switch to position I (high pressure) or II (high volume). In high-pressure mode, the compressor stops at the set pressure; in high-volume mode, you monitor the inflation yourself.
Deflation: Connect the high-volume hose to the air intake and to the item to be deflated, and switch the compressor to position II.
Maintenance and storage: Switch off the compressor and remove the battery or the 12 V plug. Clean the housing with a damp cloth or compressed air (max. 0.3 MPa) without solvents. Store in a closed, ventilated place protected from sun and rain.
Warnings:
- Do not exceed the maximum permitted pressure of the item being inflated; an over-inflated tyre or item can burst and cause serious injury. Check the reading of the built-in pressure gauge from time to time against a calibrated gauge.
- Never point the airflow at yourself, other people or animals.
- Housing parts get hot during use: carry the unit only by the handle and when switched off.
- Do not adjust or modify the safety valve.
- Do not bend or twist the hose, and do not carry the unit by the hose.
- Do not use the unit as a ventilator, for spraying or as a vacuum pump.
- Do not use the unit in explosive, very damp or dusty environments or near water splashes (IPX0). Keep the ventilation openings clear.
- The unit is not intended for use by children. Wear safety glasses and hearing protection.
Frequently asked questions (FAQ):
What is included in the Yato cordless compressor 11 bar 3 Ah set? The compressor, an 18 V 3 Ah Li-Ion battery, a charger, a high-volume hose and four inflation tips; the high-pressure hose and 12 V power cord are fixed. The body-only model without a battery is YT-23248.
Can the compressor be used without a battery? Yes, from a vehicle’s 12 V socket.
Does the Yato cordless compressor 11 bar 3 Ah stop automatically? Yes, in high-pressure mode inflation stops when the pressure set on the display is reached. There is no automatic stop in high-volume mode.
What is the maximum pressure? 11 bar (160 PSI, 1.1 MPa).
Can the compressor deflate an air mattress? Yes. The high-volume hose is connected to the air intake and the mattress, and the compressor is started in high-volume mode. The unit must not be used as a vacuum pump.
Which batteries does the compressor run on? Yato 18 V Li-Ion batteries YT-828461–YT-828465 (2–9 Ah).
Recycling instructions:
The Yato cordless compressor 11 bar 3 Ah and its charger are electrical and electronic equipment that must not be disposed of with mixed waste: take them to a WEEE collection point. Take Li-Ion batteries to a battery collection point with the terminals taped; damaged batteries must not be transported. Sort worn hoses and tips by material, and the cardboard packaging into cardboard collection.
