Description

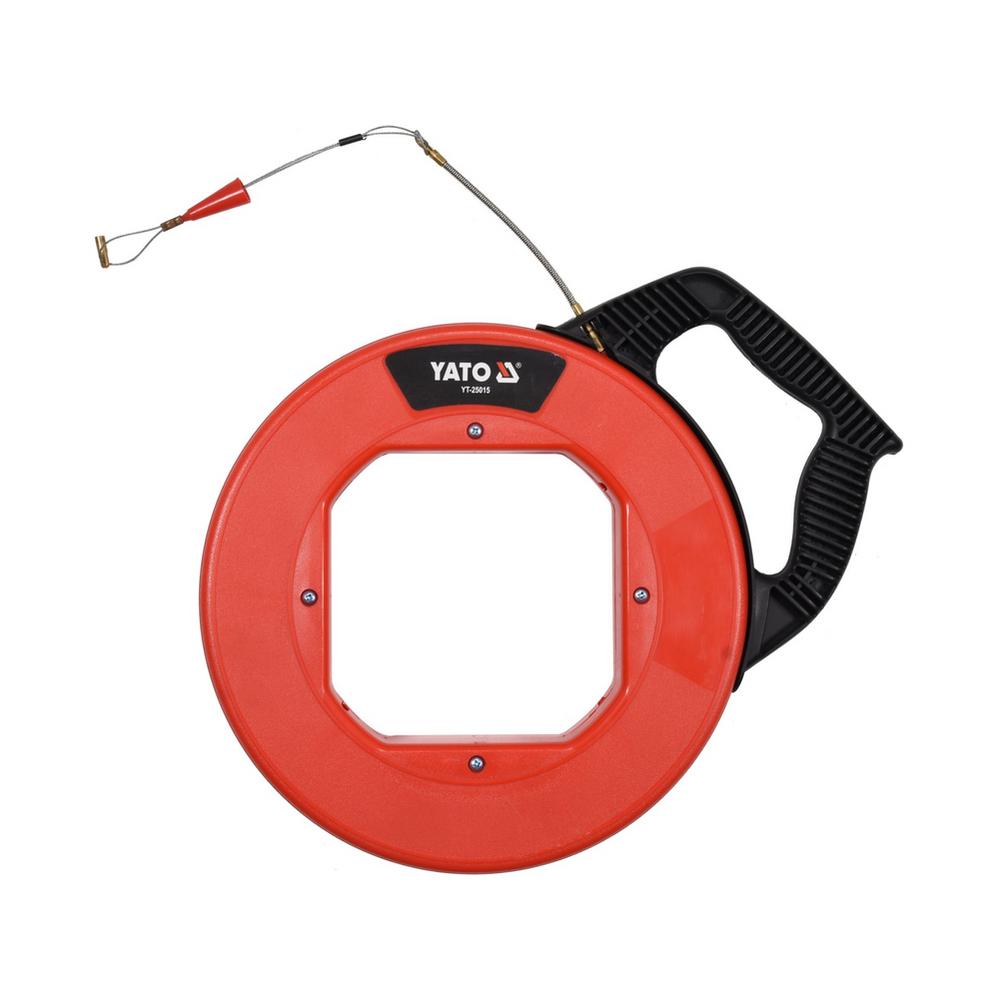

Yato fish tape 30 m (YT-25015) is a draw spring wound on a reel, used to pull cables and wires into conduits, flexible installation tubes and cable ducts. The spring is first pushed through the empty conduit, then the cable is attached to its end and pulled back.
The working part is made of PVC-coated fibreglass. The diameter of the working part is 4 mm and the working length is 30 m.
The spring is kept on a storage reel whose frame and handle are made of ABS plastic. The reel keeps the long spring under control during use and in storage.
The end of the spring has a profiled eyelet tip, joined to the spring with a threaded copper end. The reel has no brake, so feeding the spring out and in is controlled by hand.
Intended use and suitability:
The fish tape is intended for pulling wires and cables through enclosed routes.
- Electrical installations: pulling wires into conduits and flexible installation tubes in new-build and renovation projects.
- Telecommunications: pulling telephone and antenna cables through conduit routes.
- Data networks: pulling network cables into cable ducts and conduits.
Package contents:
The package contains:
- Fish tape 30 m on a reel
Features:
Main features of the design:
- Fibreglass working part: stiff but flexible, so it can be pushed into a conduit.
- PVC coating: the smooth surface slides in the conduit.
- Reel and handle: the ABS-framed reel makes feeding and winding the spring easier.
- Eyelet tip: the cable is attached to the eyelet of the tip, which is joined to the spring with a threaded copper end.
- 30 m working length: enough for long conduit runs.
Technical specifications:
Technical values of the product:
- Working length: 30 m
- Working part diameter: 4 mm
- Working part material: fibreglass, PVC
- Reel frame material: ABS
- Handle material: ABS
- Tip: profiled eyelet tip, threaded copper end
- Brake: no
Yato fish tape instructions for use:

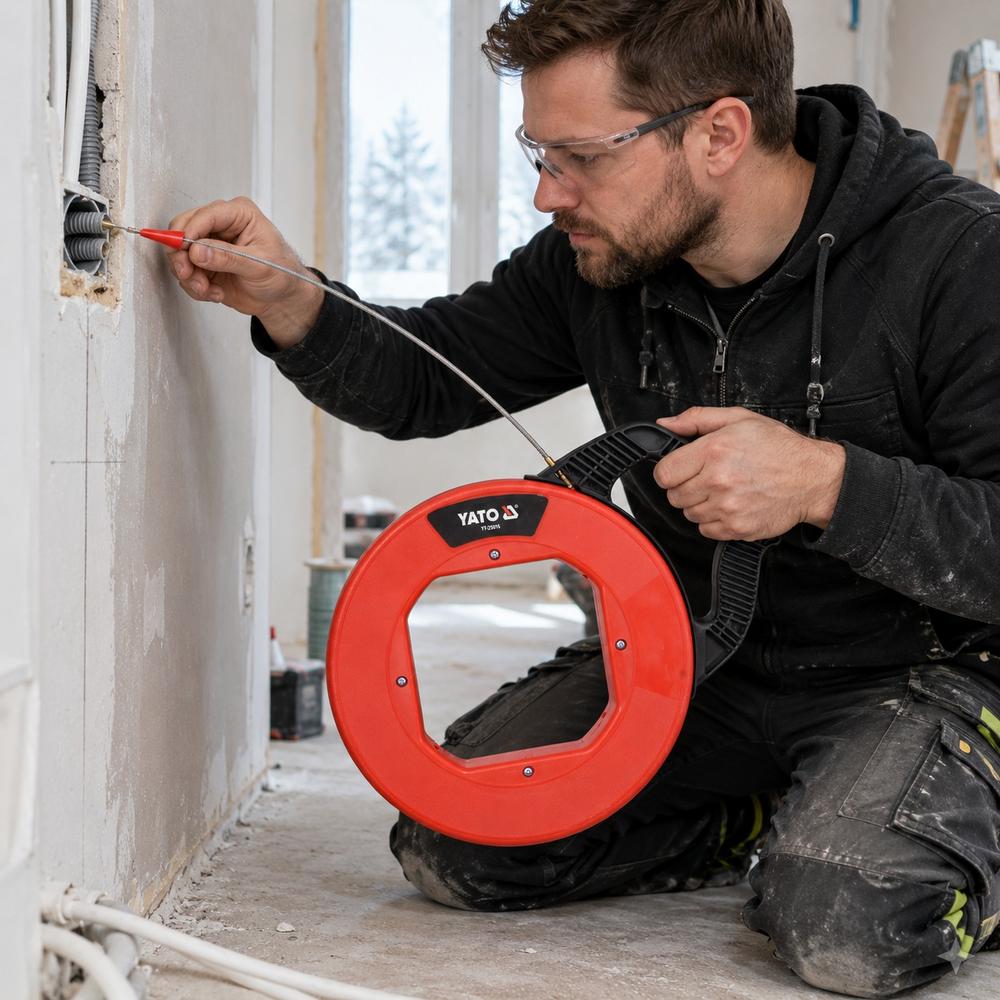

1. Feed the spring off the reel and push its end into the start of the conduit. 2. Push the spring forward evenly until the end comes out of the other end of the conduit. 3. Attach the cable or wire firmly to the eyelet tip of the spring and tape the joint smooth. 4. Pull the spring back with even force, winding it onto the reel at the same time. 5. Wipe the spring clean and dry before storage.
Warnings:
Follow these instructions:
- Do not use in live installations; switch off the power before work.
- Do not bend the spring into a sharp kink; damaged fibreglass can break and splinter.
- Wear protective gloves if the coating is damaged.
- The reel has no brake, so hold the reel while feeding the spring.
Frequently asked questions (FAQ):
General questions about the product.
How long and how thick is the Yato fish tape 30 m?
The working length is 30 m and the diameter of the working part is 4 mm.
What material is the working part of the fish tape made of?
The working part is fibreglass with a PVC coating.
Which conduits and ducts can the cable pulling spring be used in?
Conduits, flexible installation tubes and cable ducts in electrical, telephone and data network installations.
Does the fish tape reel have a brake?
No, feeding of the spring is controlled by hand.
Recycling instructions:
Sort the packaging by material into cardboard or plastic collection. Take a Yato fish tape 30 m at the end of its life to mixed waste or a waste station, because fibreglass and PVC do not belong in plastic collection.
