Description

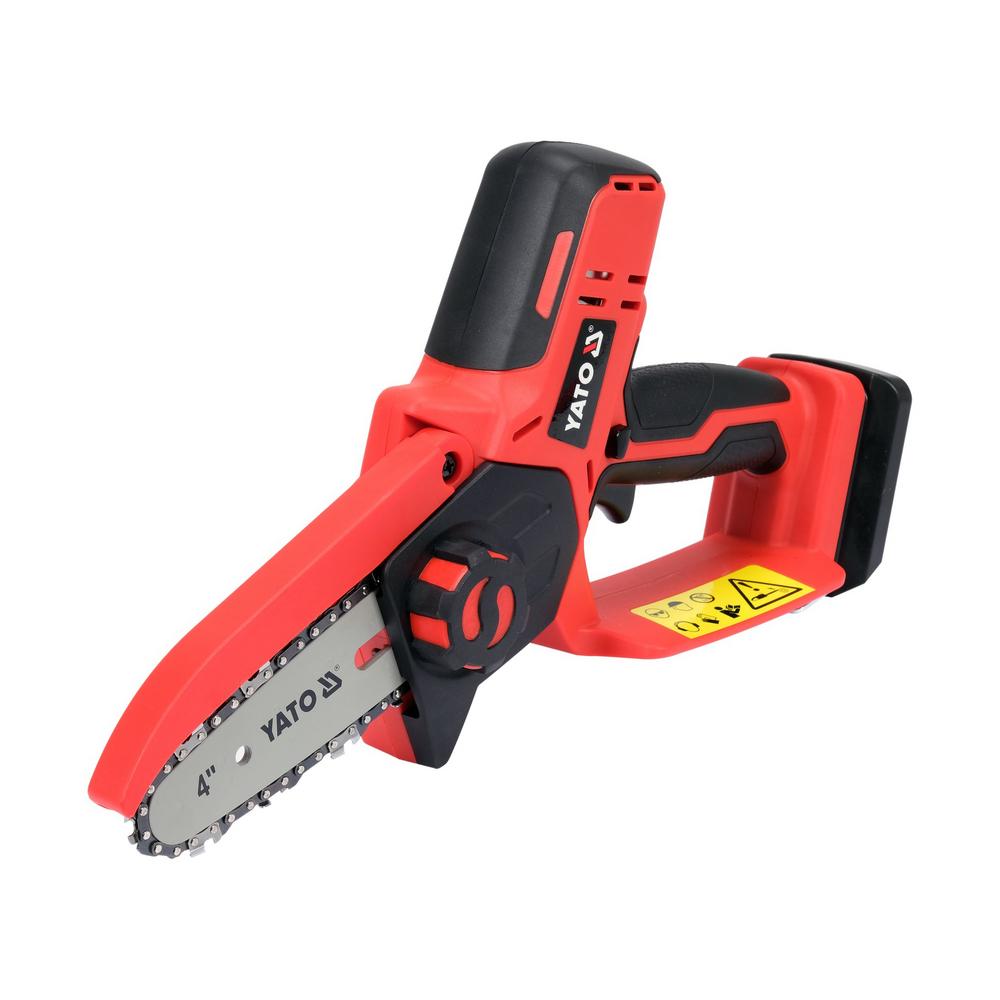

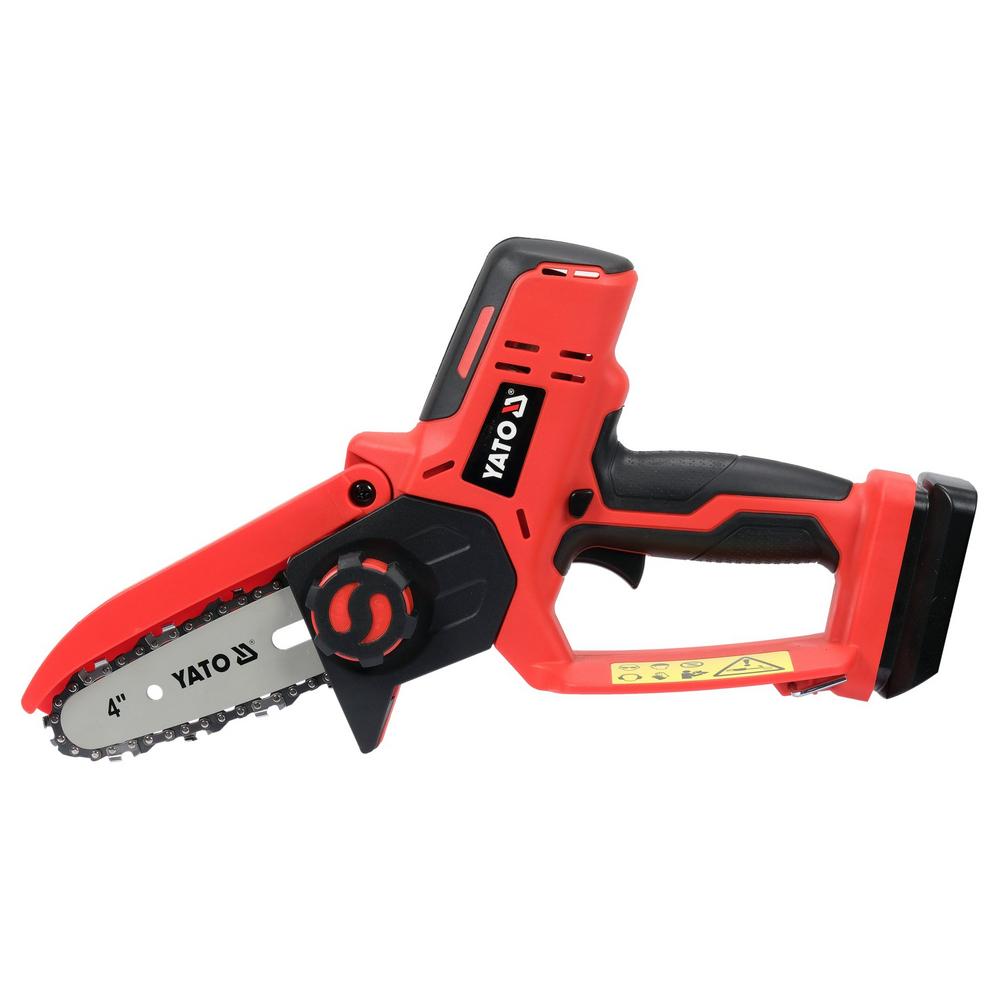

Yato cordless pruning saw 10 cm, body only (YT-828136) is a lightweight cordless mini chainsaw for cutting branches and trimming shrubs and brushwood. The saw has a 4″ (101 mm) guide bar, a 0.3″ (7.62 mm) pitch chain and a chain speed of 4.8 m/s. The body-only version is supplied without a battery and charger, and it runs on Yato 18 V Li-Ion batteries.
The saw weighs 1.1 kg without battery, guide bar and chain, so it can be used for long periods in yard and garden pruning work. The saw is held with the right hand on the handle and the left hand on the rubber-coated part of the housing. The bar has a pivoting top guard, which is lowered before starting.
The chain tension is adjusted with the tensioning screw on the side panel: turning clockwise tightens the chain and anticlockwise loosens it. The saw has no oil tank, so the chain is lubricated by hand with an oil can every 15–20 minutes. The switch lock prevents accidental starting.
The rated voltage of the saw is 18 V DC, protection class III and speed 3200 min⁻¹. The sound pressure level is 78.0 dB(A) and the sound power level 89.0 dB(A) (guaranteed 92 dB(A)). The saw is not intended for felling trees.
Uses and suitability:
The cordless pruning saw is designed only for cutting wood: cutting branches, trimming shrubs and brushwood and cutting up small trees and twigs.
- Removing branches from fruit and ornamental trees: Cutting dry and excess branches about 15 cm from the trunk in three cuts, so that the bark does not tear.
- Clearing shrubs and brushwood: Cutting thick shrub shoots and brushwood in the yard, at the cottage and along plot edges.
- Cutting up twigs and branches: Cutting pruned branches for compost or firewood on a sawhorse.
- Light yard work: The 10 cm bar and 1.1 kg weight suit tight spots, such as next to a fence or wall.
The saw takes Yato 18 V batteries, such as the Yato 18V Li-Ion battery, which are charged, for example, with the Yato battery charger 18V 2.4-4.5A smart fast charger. For thicker branches, choose the model with a larger bar, Yato cordless pruning saw 7″ 18V, body only. The set version YT-828135 includes a 2 Ah battery and a charger.
Package contents:
- Yato cordless pruning saw 18 V (body only, without battery and charger)
- Guide bar 4″ (101 mm)
- Saw chain

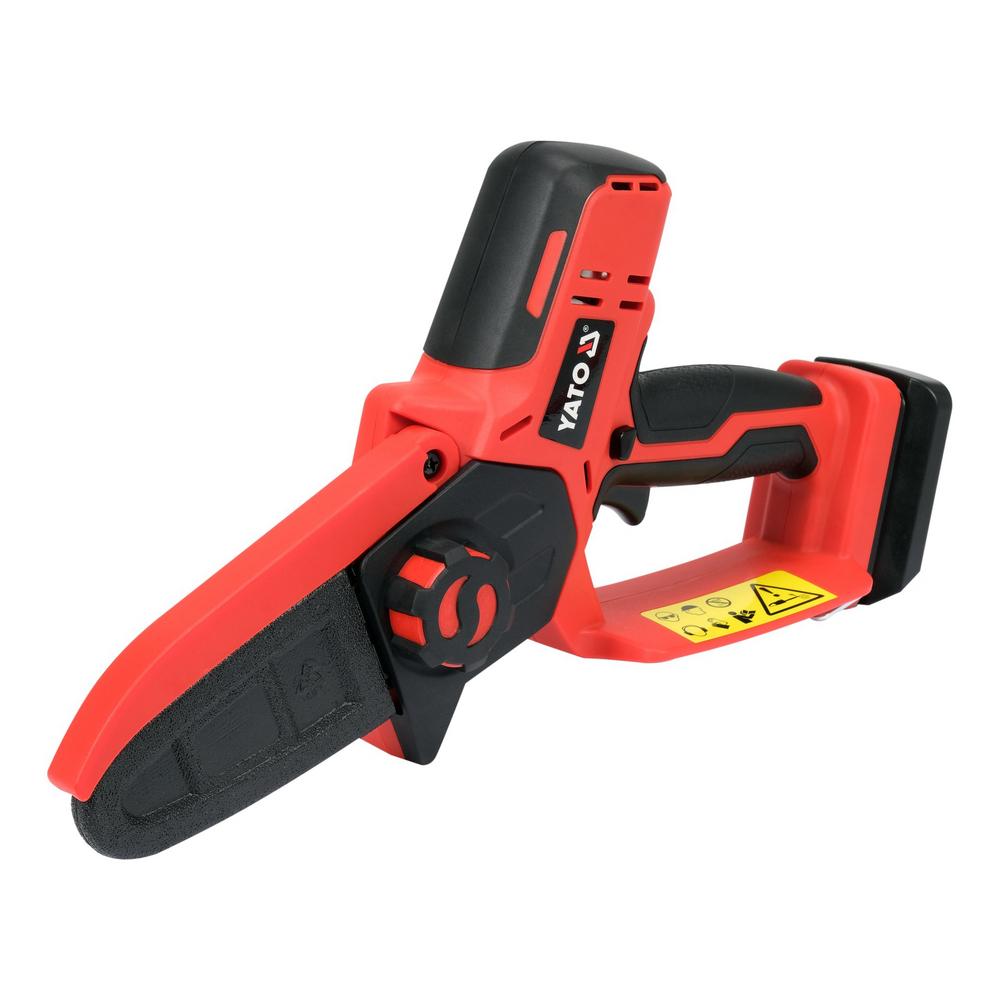

- Guide bar and chain cover
Features:
- Lightweight design: 1.1 kg without battery, bar and chain; the saw is used with the right hand on the handle and the left on the rubber part of the housing.

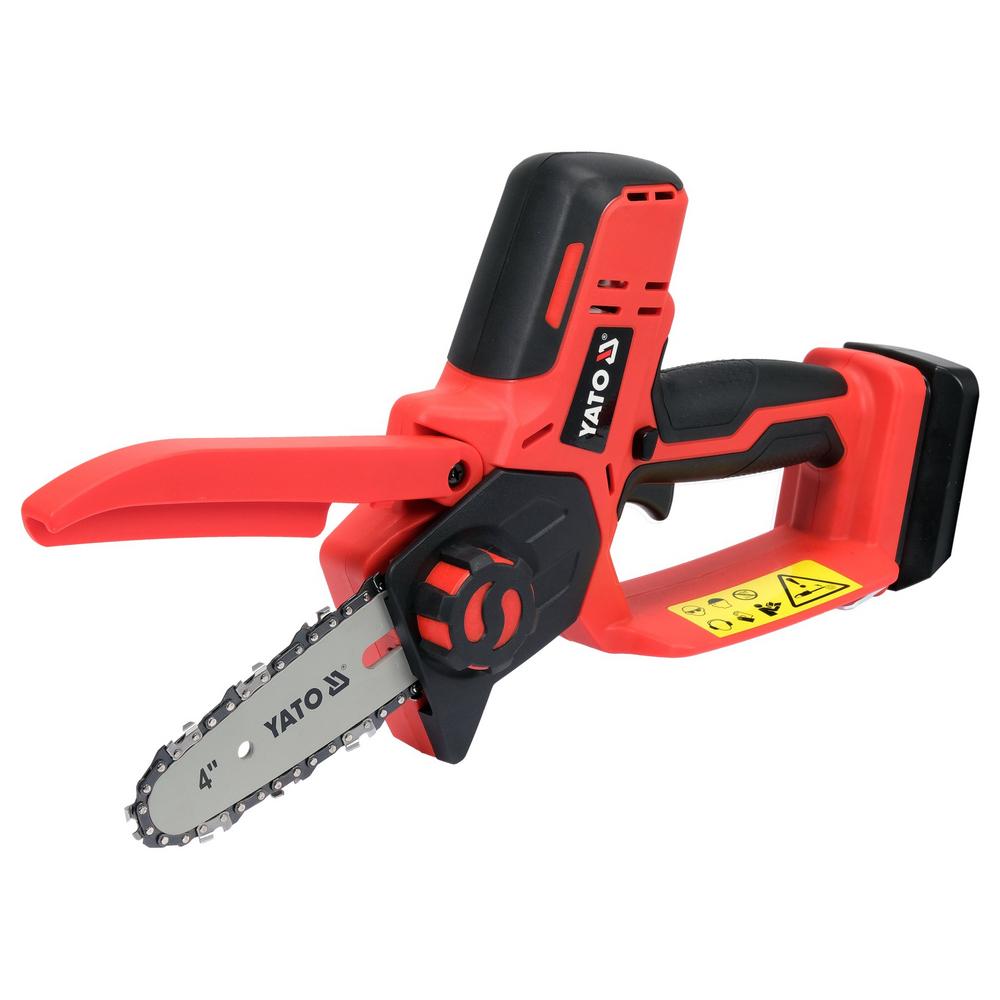

- Top guard: The pivoting guard on top of the bar is lowered before starting.
- Chain tensioning screw: The tension is adjusted with the screw, and the bar is locked with the locking knob on the side panel.
- Start switch lock: The switch works only when the lock button is pressed with the thumb.
- Soft handle: The rubber-coated handle improves grip.
- Manual lubrication: The chain is lubricated with an oil can every 15–20 minutes; there is no separate oil tank to fill.
- Yato 18 V system: Runs on Yato 18 V Li-Ion batteries (YT-828461–YT-828465), which are charged with Yato 18 V chargers (YT-828498–YT-828502).
Technical specifications:
- Voltage: 18 V DC.
- Battery type: Li-Ion.
- Batteries included: no (body only).
- Charger included: no.
- Speed: 3200 min⁻¹.
- Guide bar length: 4″ (101 mm).
- Chain pitch: 0.3″ (7.62 mm).
- Drive link thickness: 0.043″ (1.1 mm).
- Number of drive links: 26.
- Chain sprocket: 6 teeth x 7.62 mm.
- Maximum chain speed: 4.8 m/s.
- Automatic chain lubrication: no (manual lubrication every 15–20 minutes).
- Quick chain tensioning: no (tensioning screw).
- Soft handle: yes.
- Protection class: III.
- Sound pressure level LpA: 78.0 ± 3.0 dB(A).
- Sound power level LwA: 89.0 ± 3.0 dB(A); guaranteed sound power level 92 dB(A).
- Vibration: 3.425 ± 1.5 m/s².
- Weight: 1.1 kg (without battery, guide bar and chain).
- Spare chain: YT-849465 (0.043″, 4″, 26 links).
- Spare guide bar: YT-84914 (0.043″, 4″).
User instructions for the Yato cordless pruning saw 10 cm, body only:
Fitting the bar and chain: Remove the battery and wear protective gloves. Open the locking knob and remove the side panel. Place the chain in the bar groove and on the drive sprocket so that the cutters on the links point according to the direction marking on the housing. Refit the side panel, adjust the tension with the tensioning screw and tighten the locking knob. A correctly tensioned chain lifts 3–4 mm from the bar; check the tension every 10 minutes of use.
Lubrication: The saw has no oil tank. Every 15–20 minutes, stop work, remove the battery and side panel, clean the chain and apply chain oil to the links with an oil can. Used engine oil must not be used.
Fitting the battery and starting: Make sure the trigger is not pressed and slide the battery into the battery slot until it locks. Remove the bar cover, hold the handle with your right hand and place your left hand on the rubber-coated part of the housing. Make sure the top guard is down, press the lock button with your thumb and press the trigger. The saw stops when the trigger is released.
Cutting: Bring the saw to the branch only at full speed and cut with the lower edge of the bar. Do not cut with the upper quarter of the bar tip, do not raise the saw to shoulder height and do not stand in line with the cut. Thick branches are first cut from below and above about 15 cm from the trunk, and finally next to the trunk from above.
Maintenance and storage: Remove the battery, clean the housing and ventilation openings, check the chain tension and condition and cover the chain with a thin layer of oil. Sharpening is best done at a service centre. Store the saw in a dry place with the bar cover fitted.
Warnings:
- Kickback: If the bar tip hits an object or the chain jams in the kerf, the saw can be thrown towards the user. Always hold the saw with both hands.
- Not for felling trees: The saw is designed for cutting branches and shrubs; it must not be used for felling trees.
- Wood only: Do not cut plastic, concrete or other building materials; watch out for nails and stones in the wood.
- Not in a tree or on a ladder: Work standing on a firm, level surface.
- Personal protective equipment: Wear safety glasses, hearing protection, a safety helmet and protective gloves.
- Jammed material: Remove the battery and make sure the switch is in the off position before removing a jammed branch or doing maintenance.
- Moisture: Do not expose the saw to rain and do not work in rain or fog.
- Slippery handles: Keep the handles dry and free of oil and grease.
Frequently asked questions (FAQ):
Are a battery and charger included with the Yato cordless pruning saw 10 cm body-only model?
No. The body-only version includes the saw, 4″ guide bar, chain and cover. Buy the battery and charger separately or choose the set version YT-828135.
Is the chain lubricated automatically?
No. The saw has no oil tank, so the chain is lubricated by hand with an oil can every 15–20 minutes of use.
Can the saw be used to fell trees?
No. The saw is designed for cutting branches and trimming shrubs and brushwood.
Which batteries fit the saw?
Yato 18 V Li-Ion batteries YT-828461–YT-828465, which are charged with Yato 18 V chargers YT-828498–YT-828502.
Which spare chain and bar fit the saw?
The spare chain is YT-849465 (0.043″, 26 drive links) and the spare guide bar YT-84914.
Recycling instructions:
The Yato cordless pruning saw 10 cm, body only, is electrical and electronic equipment (WEEE) that must not be disposed of with mixed waste. Take the saw to a WEEE collection point at the end of its life. Return Li-Ion batteries to a battery collection point; cover the battery terminals with insulating tape. Take oily cleaning cloths and waste oil to hazardous waste collection. Sort the cardboard packaging into cardboard recycling.
