Description

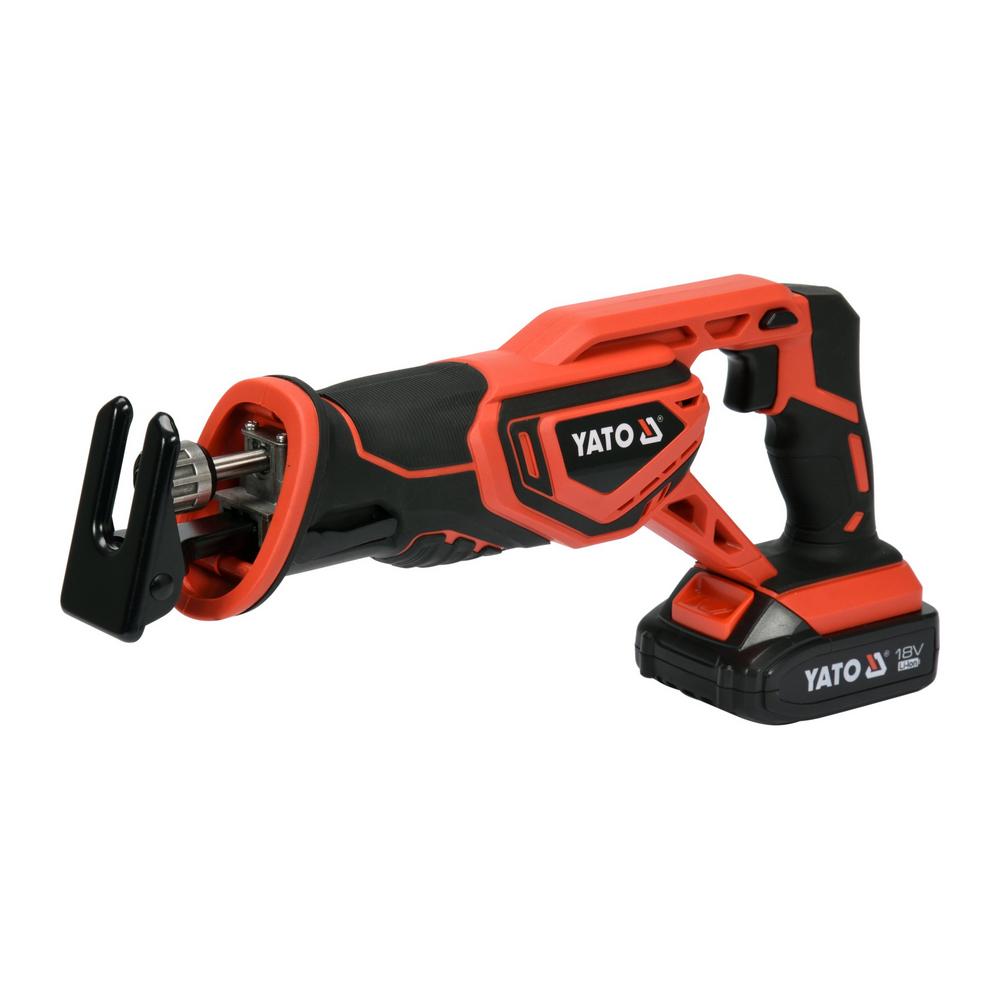

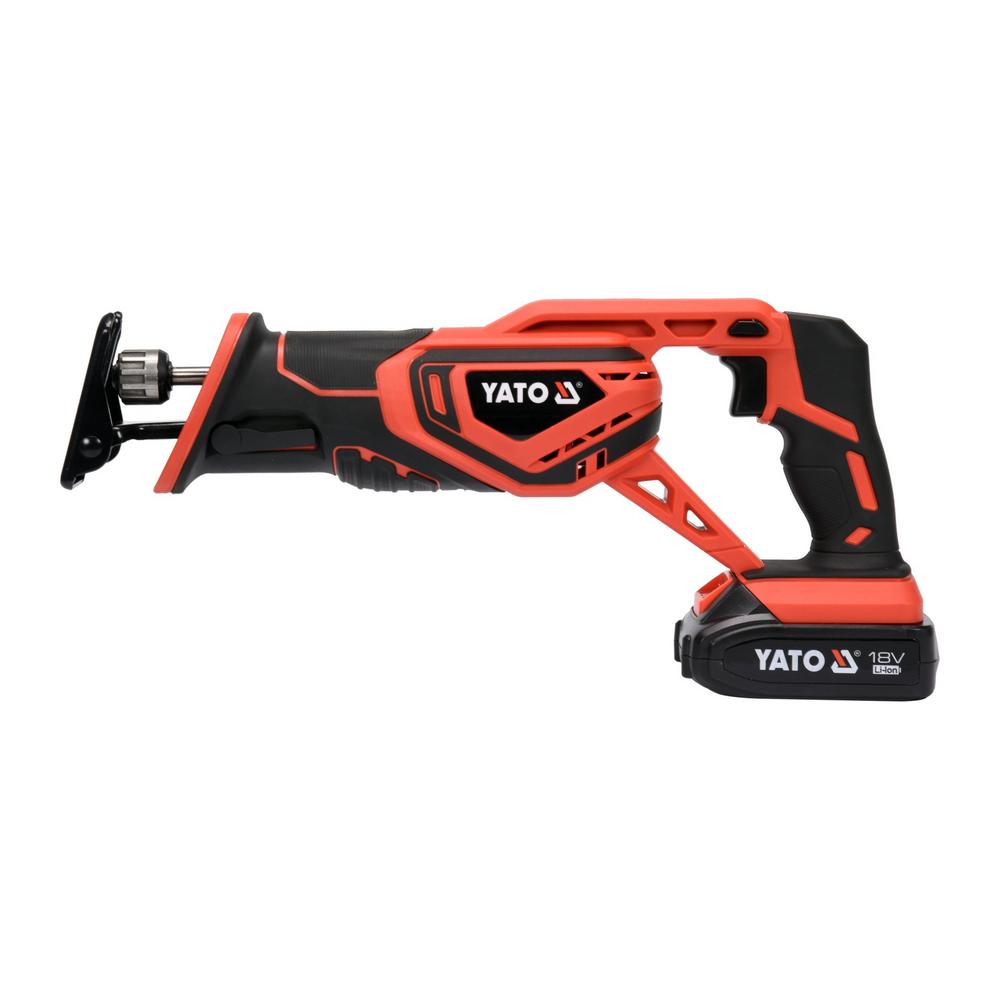

Yato cordless reciprocating saw set 18V is a cordless reciprocating saw supplied with a 2 Ah Li-Ion battery and a fast charger (charging time approx. 1 h). The saw is part of the Yato 18 V battery system, in which the same battery fits all tools in the range. The cutting depth is 80 mm in wood and 10 mm in metal.
The blade stroke length is 25.4 mm and the stroke rate is infinitely variable between 0–3000 strokes/min depending on how far the trigger is pressed. The blade holder is a 1/2″ (12.7 mm) universal fitting, which takes the most common reciprocating saw blades; the blade can be fitted with the teeth facing up or down. The blade is changed without tools by turning the clamp.
With the battery, the saw weighs 1.6 kg. The shoe is removable, its height is adjustable in steps and its angle steplessly, so you can change the cutting depth and working position without lifting the shoe off the workpiece. The non-slip handle and the trigger lock prevent accidental starting.
The battery has a 4-stage charge level indicator and cell overheating protection. The operating voltage is 18 V DC, protection class III, IP rating IPX0 (not protected against water). The sound pressure level is 81 dB(A) and the sound power level 92 dB(A), so ear defenders are necessary.
Uses and suitability:
The reciprocating saw is intended for cross-cutting and shape cutting in wood, wood-based boards, plastic and metal, with a blade chosen to suit the material.
- Construction and demolition work: Cutting boards, battens, roof joists and building boards, plunge cutting in soft wood and plasterboard, and demolition work where the blade can be pushed into narrow gaps.
- Garden: Cutting thick branches and small trunks with a wood blade; the saw replaces a handsaw for pruning branches.
- Metal and pipe work: Cutting steel profiles (wall thickness up to 3 mm), sheet metal, and copper and plastic pipes with a metal blade. Sheet metal is cut between two pieces of wood to keep the cut straight.
- Plumbing and electrical installations: Cutting pipes flush with a wall or floor using a flexible blade, and cutting openings in boards from a pre-drilled hole.
The same Yato 18 V battery system includes, among others, the Yato cordless reciprocating saw set 18V 4.0 Ah Li-Ion battery, Yato cordless jigsaw 18V + 2 Ah battery and charger set and Yato battery charger 18V 2.2A. The Yato cordless reciprocating saw set 18V suits users who do not yet have a Yato 18 V battery; the body alone is available under code YT-82815.
Package contents:
- Yato cordless reciprocating saw 18 V (YT-82815 body)
- Li-Ion battery 18 V 2 Ah
- Fast charger 18 V (2.4 A, 60 W)
- Instruction manual
Features:
- Tool-free blade change: A rotating clamp locks the blade; the clamp holds universal blades with a 1/2″ (12.7 mm) shank.
- Variable speed control: Potentiometer trigger, 0–3000 strokes/min; start slowly in wood and then increase the speed.
- Adjustable shoe: Height in steps with a lever, angle steplessly against the guide; the shoe is removable.
- Blade fitting in two directions: Teeth up or down, which makes cutting next to a wall and overhead easier.
- Battery protection: Cell overheating protection and a 4-stage LED charge level indicator on the battery.
- Fast charger: Charges the 2 Ah battery fully in about an hour; red LED charging, green LED ready.
- Yato 18 V system: The same battery fits the other tools in the range; spare batteries 2 Ah, 3 Ah and 4 Ah.
- Ergonomics: Non-slip handle, slim body for tight spots, trigger lock.
Technical specifications:
- Voltage: 18 V DC.
- Stroke rate: 0–3000 min⁻¹, electronic control.
- Blade stroke length: 25.4 mm.
- Cutting depth in wood: 80 mm.
- Cutting depth in metal: 10 mm (profile wall thickness up to 3 mm).
- Blade holder: universal type 1/2″ (12.7 mm).
- Battery: Li-Ion 18 V, 2 Ah (2000 mAh), 1 pc.
- Charger: 220–240 V, 50/60 Hz, output 21 V DC, 2.4 A, 60 W; charging time 1 h.
- Protection class: III.
- IP rating: IPX0.
- Sound pressure level: 81.0 ± 3.0 dB(A).
- Sound power level: 92.0 ± 3.0 dB(A).
- Vibration: 7.5 ± 1.5 m/s² (board) / 8.3 ± 1.5 m/s² (timber beam).
- Tool weight: 1.6 kg.
- Work light: no.
Instructions for using the Yato cordless reciprocating saw set 18V:
Charging: Clean the battery contacts with a dry cloth, push the battery into the charger and plug the charger into a socket. The red LED is lit while charging, and the green LED shows that the battery is full. Unplug the charger and release the battery from the charger with the latch button.
Fitting the blade: Remove the battery. Check that the blade is undamaged. Turn the clamp, push the blade shank into the slot in the spindle and release the clamp; pull the blade to make sure it is locked. Use a coarse-toothed blade for wood and a fine-toothed blade for metal and plastic.
Adjusting the shoe: Turn the lever on the front panel, set the shoe to the required height and lock the lever. The whole surface of the shoe must rest against the workpiece while cutting.
Cutting: Clamp the workpiece and support it on both sides of the cutting line. Press the trigger lock and the trigger, let the saw reach speed and start cutting with light pressure. Plunge cut only in soft wood or plasterboard with a short blade. When cutting metal, use a thin film of oil or coolant.
Maintenance: Clean the housing and ventilation openings with compressed air (max. 0.3 MPa) or a brush without chemicals. Store the battery at 0–30 °C at about 70% charge, and charge it at least once a year.
Warnings:
- Read the instruction manual before use. Wear safety glasses, ear defenders and protective gloves.
- Always remove the battery before changing the blade, making adjustments or servicing. Fit the blade wearing protective gloves.
- Hold the saw by the insulated gripping surfaces: the blade may hit hidden electrical cables.
- Do not hold the workpiece in your hand or against your body; secure it with clamps.
- Do not cut around a wall: risk of kickback. Plunge cutting into metal and hard materials is prohibited.
- The blade keeps moving for a moment after switching off. The surface of the body must not exceed 60 °C.
- Charge the battery only with the supplied charger, in a dry place and under adult supervision. Do not short-circuit the battery terminals and do not use a damaged battery.
- Not for use by children. Not water-protected (IPX0): do not use in rain.
Frequently asked questions (FAQ):
Which blades does the Yato cordless reciprocating saw set 18V use? Universal reciprocating saw blades with a 1/2″ (12.7 mm) shank; blade changes are tool-free.
How thick a piece of wood and metal does the saw cut? Wood 80 mm and metal 10 mm; steel profile wall thickness up to 3 mm.
How long does it take to charge the 2 Ah battery? About 1 hour with the supplied fast charger.
Does the same battery fit other Yato 18 V tools? Yes, Yato 18 V system batteries and chargers are compatible with the tools in the range.
Can I get the saw without a battery? Yes, the body alone is model YT-82815; this set includes the battery and charger.
Does the saw have a work light or orbital action? No, the saw has a straight stroke and no LED work light.
Recycling instructions:
Recycle the cardboard packaging and the manual in paper and cardboard collection. The Yato cordless reciprocating saw set 18V is an electrical device: take a discarded saw and charger to WEEE (waste electrical and electronic equipment) collection, not mixed waste. Return the Li-Ion battery to battery collection or to the retailer; tape the terminals before transport, and do not transport a damaged battery.
