Description

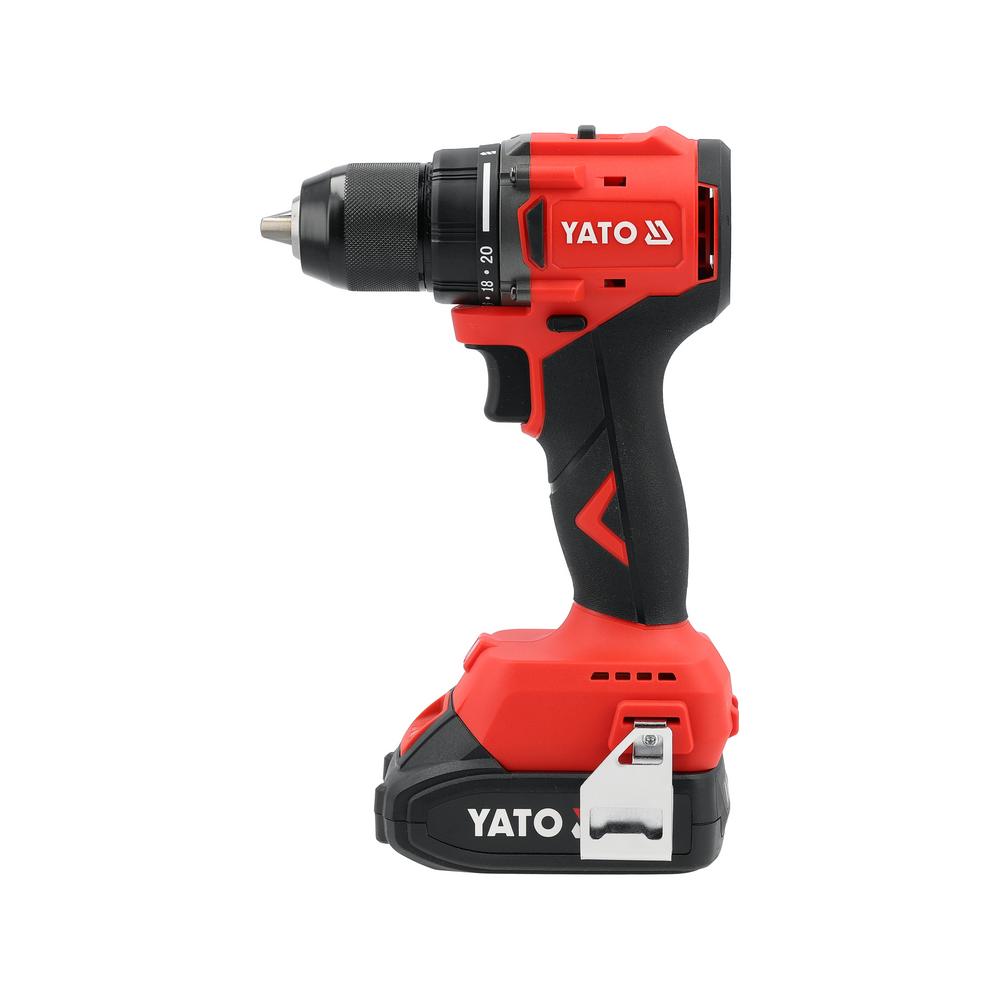

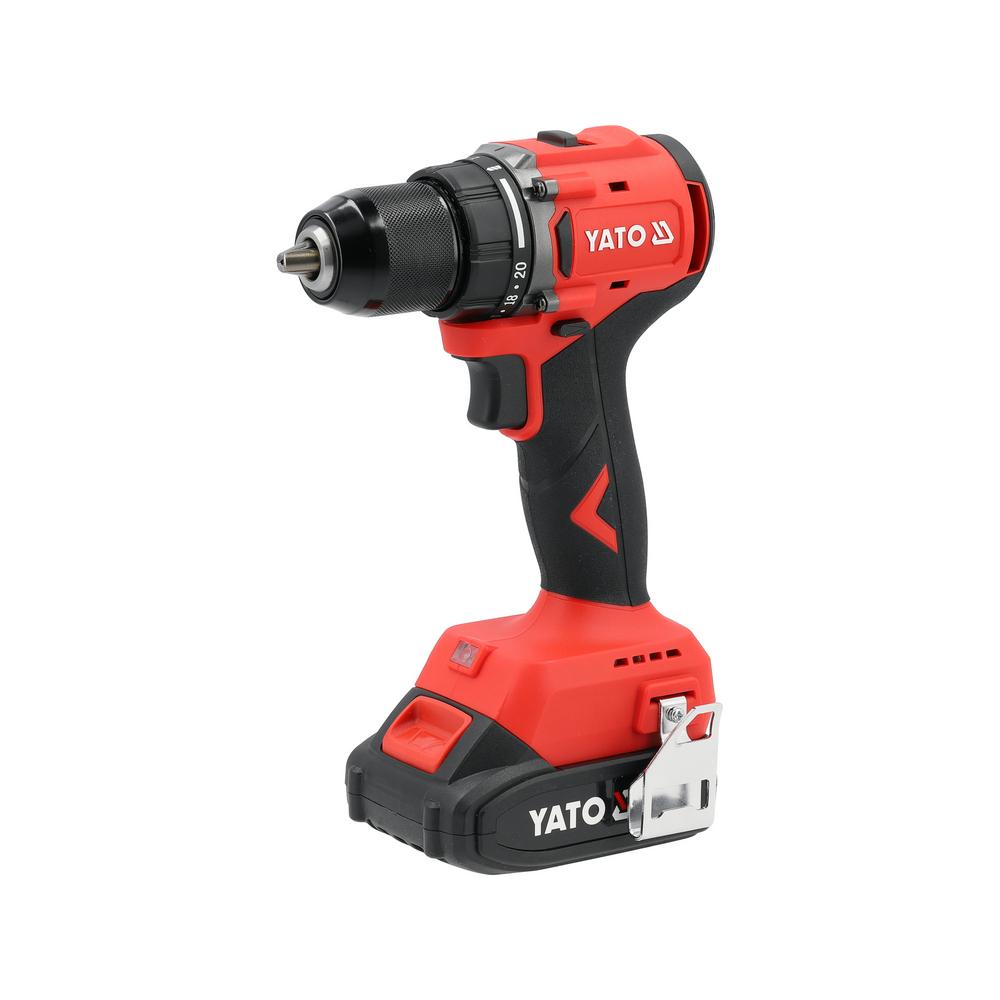

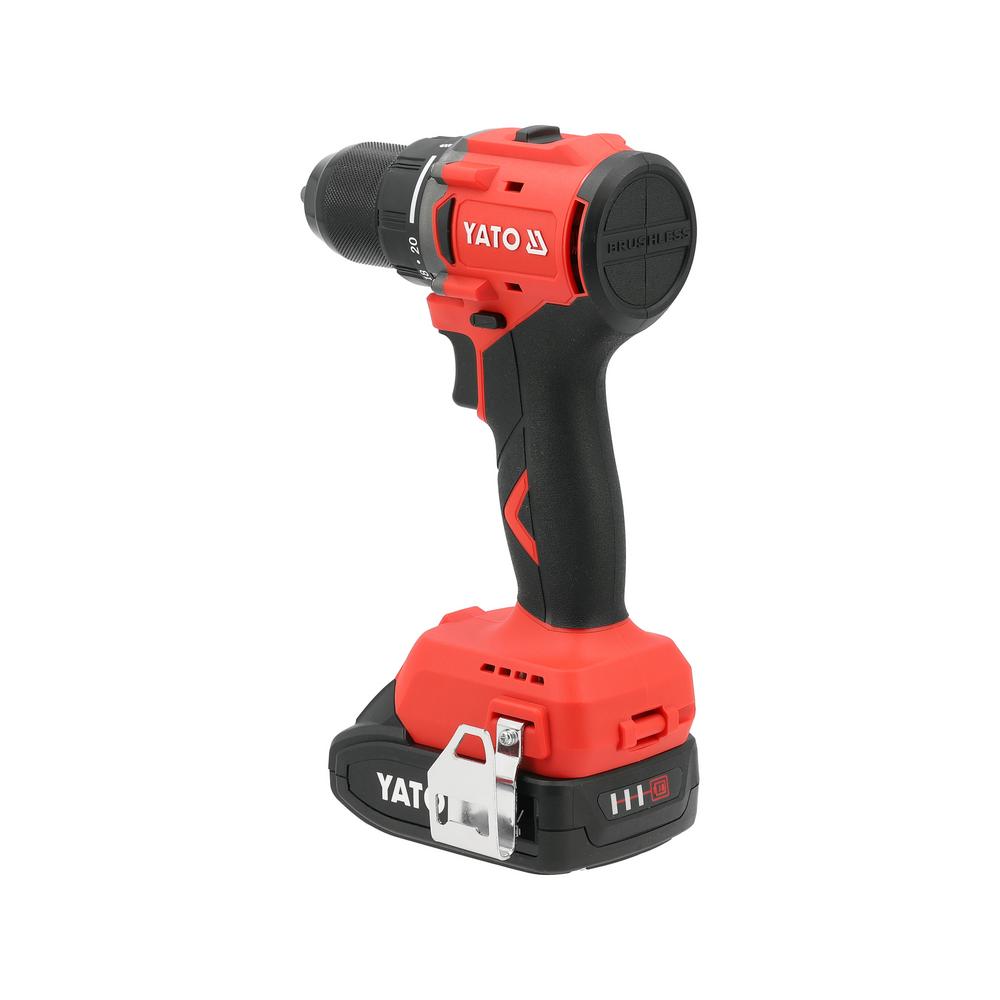

Yato cordless drill 60 Nm 2 Ah (YT-827680) is an 18 V drill/driver with a brushless motor and a maximum torque of 60 Nm. The set includes a 2 Ah Li-Ion battery, a charger and a carrying case; the battery charging time is about 1 hour. The tool is part of the Yato 18 V system and uses its Li-Ion slide-on batteries.
The two-speed mechanical gearbox gives speeds of 0–460 min⁻¹ and 0–2000 min⁻¹. In first gear the maximum torque is 60 Nm and in second gear 30 Nm. The low speed range is intended for screwdriving and drilling metal, and the high speed range for drilling wood.
The keyless, self-centring 13 mm chuck holds cylindrical-shank drill bits and bit holders. The maximum drilling diameter is 38 mm in wood, 13 mm in steel and 12 mm in soft brick. The tool has no hammer function.

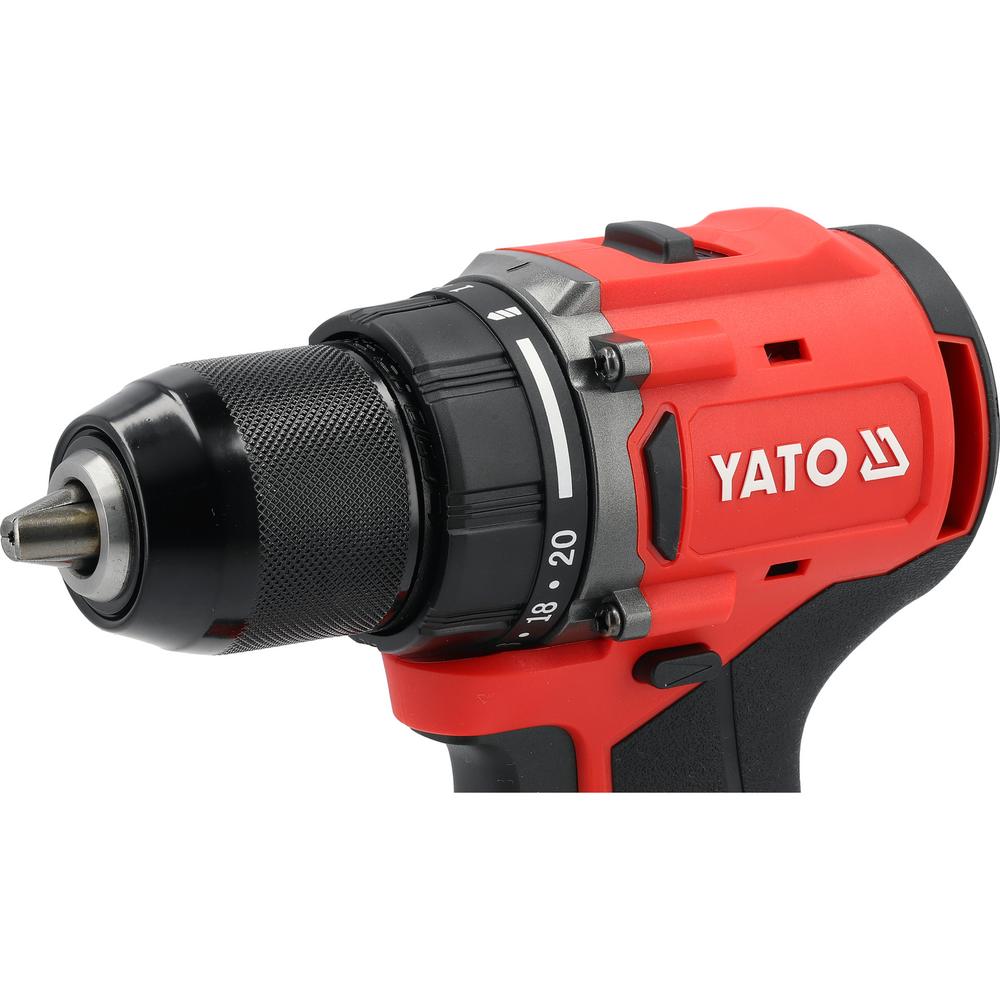

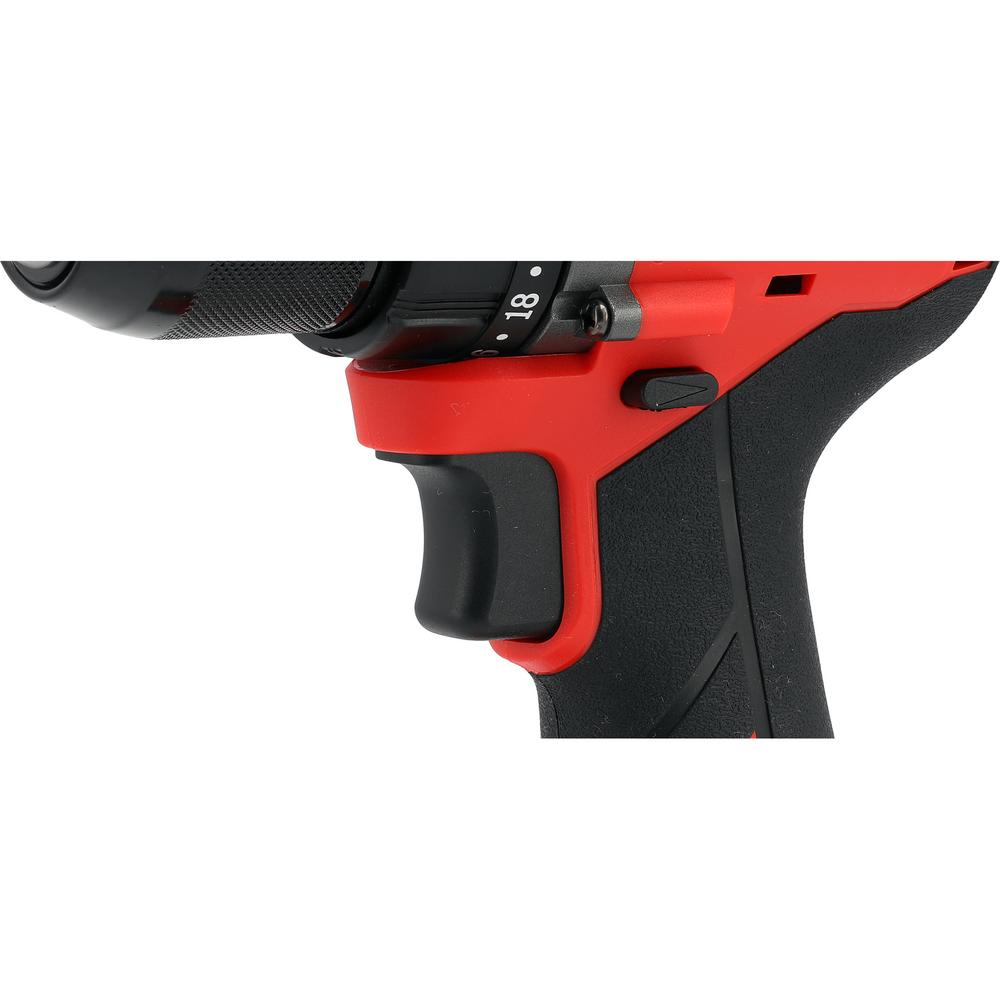

The ring behind the chuck selects one of 19 torque settings for screwdriving or the drilling position, in which the torque-limiting clutch is disengaged. The trigger adjusts the speed steplessly, and the spindle brake stops the chuck. The centre position of the reversing switch locks the trigger.
The tool weighs 0.98 kg and has insulation class III and IP rating IPX0, so it is used only in dry conditions. The declared sound pressure level is 60.7 dB(A) and vibration 1.215 m/s². There is a metal belt hook at the bottom of the handle.
Uses and suitability:
The Yato cordless drill 60 Nm 2 Ah is designed for drilling holes in wood, wood-based materials, metal, tiles, soft brick and mortar, and for driving and removing screws.
- Installation and finishing work: Assembling furniture, fitting rails and brackets, and installing suspended ceilings; the light tool makes long periods of overhead work easier.
- Woodwork: Holes in wood and wood-based boards with bits up to 38 mm; when drilling through holes, place a piece of wood under the workpiece to prevent splintering.
- Metalwork: Holes in steel with bits up to 13 mm at low speed; cool the bit with machine oil, and paraffin can be used for aluminium.
- Tiles, soft brick and mortar: Drilling with bits intended for the material at low speed and moderate pressure; hard stone and concrete require a hammer drill.
- Screwdriving: Driving and removing screws with adjustable torque; find the right setting by testing on a scrap piece.
A suitable extra battery is the Yato 18V Li-Ion battery, and alongside the charger in the set you can also use, for example, the Yato battery charger 18V 2.2A. The model in the same system with a hammer function for drilling brick and concrete is the Yato cordless hammer drill 18V BL 75Nm, body only. The same tool is also available with two 2 Ah batteries (YT-827681) and as a body-only model without battery and charger (YT-827682).

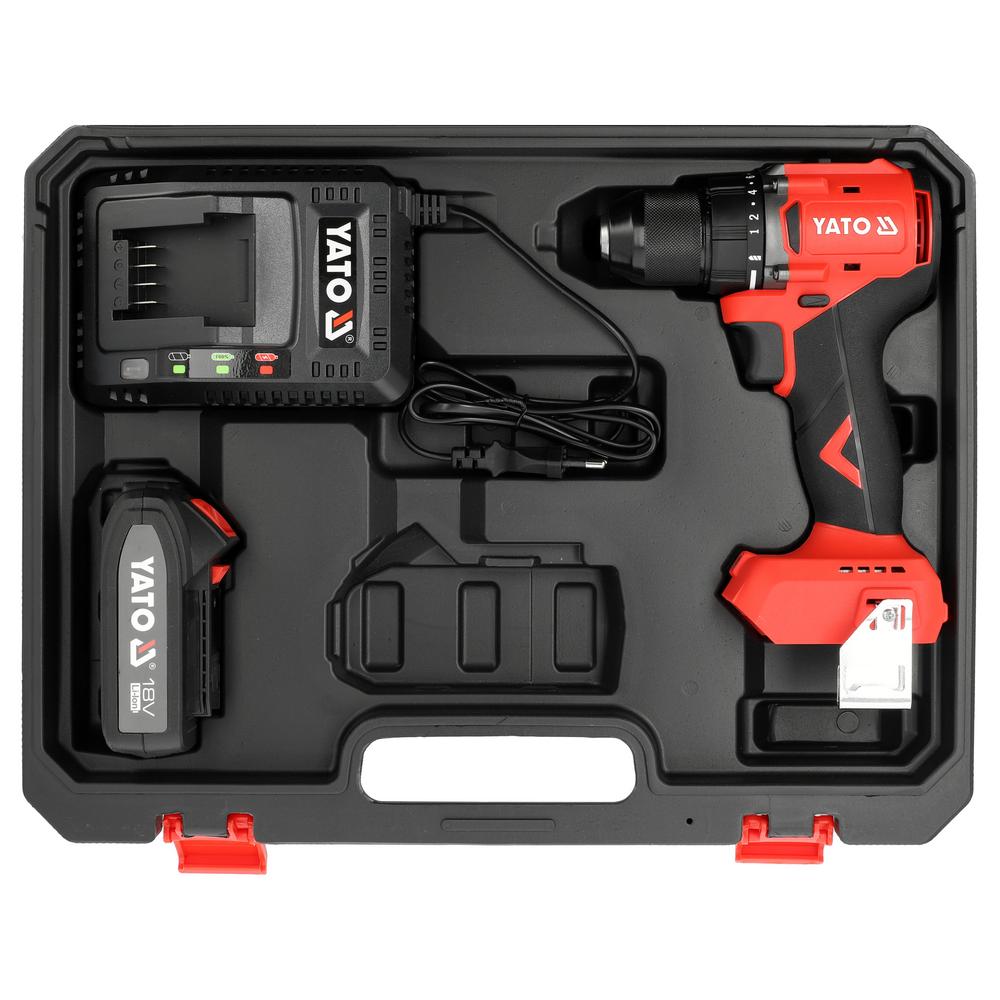

Package contents:
- Yato cordless drill/driver 18 V, brushless, 60 Nm
- Belt hook (attached to the tool)
- Li-Ion battery 18 V 2 Ah
- Charger
- Carrying case
- Instruction manual
Features:
- Brushless motor: No carbon brushes to wear out; battery energy is used efficiently.

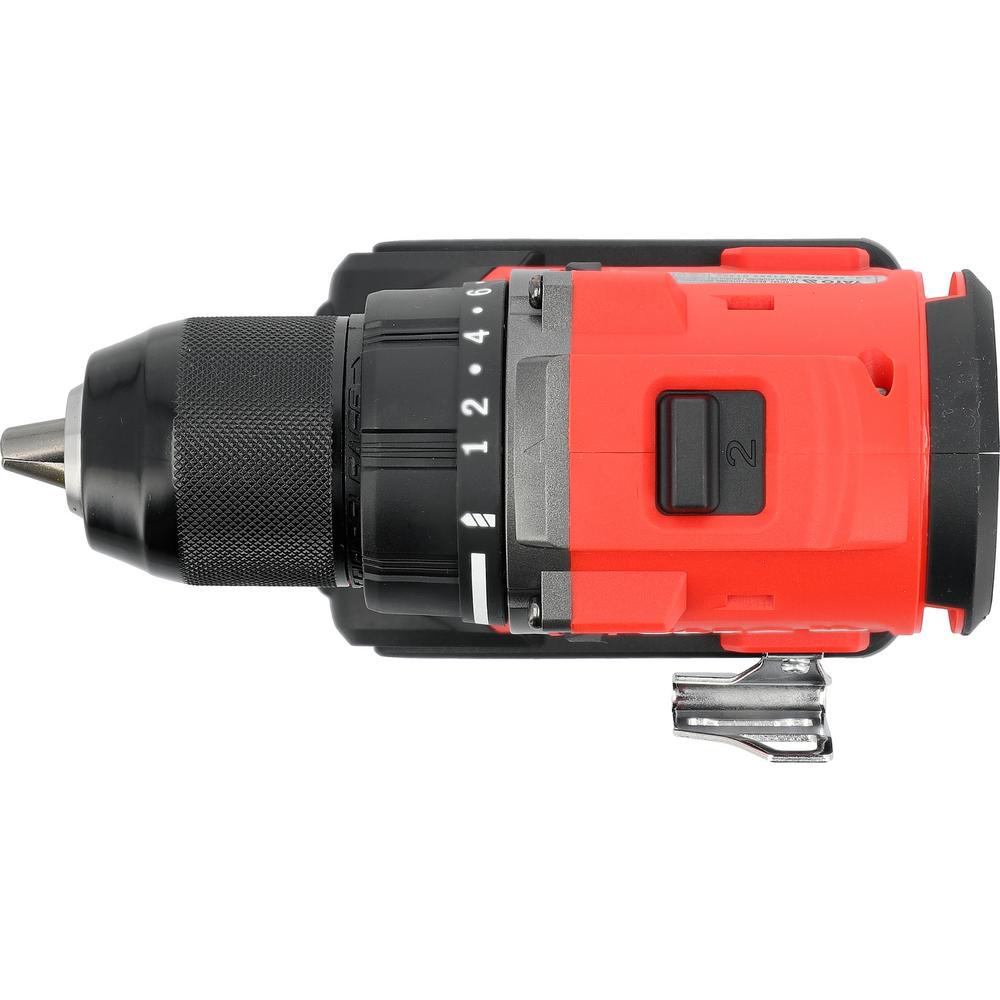

- Two-speed gearbox: 0–460 min⁻¹ for screwdriving and drilling metal, 0–2000 min⁻¹ for drilling wood; mechanical gear selector on top of the housing.
- 60 Nm torque: 60 Nm in 1st gear and 30 Nm in 2nd gear.
- Torque adjustment ring: 19 torque settings and a drilling position; the torque-limiting clutch reduces the risk of damage to the screw head, thread and material.
- 13 mm keyless chuck: Self-centring, keyless chuck for cylindrical-shank bits and bit holders.
- Electronic speed control: The trigger adjusts the speed steplessly.
- Spindle brake: The chuck stops when the trigger is released.
- Reversing switch: Forward and reverse rotation; the centre position locks the trigger while you carry the tool or change bits.

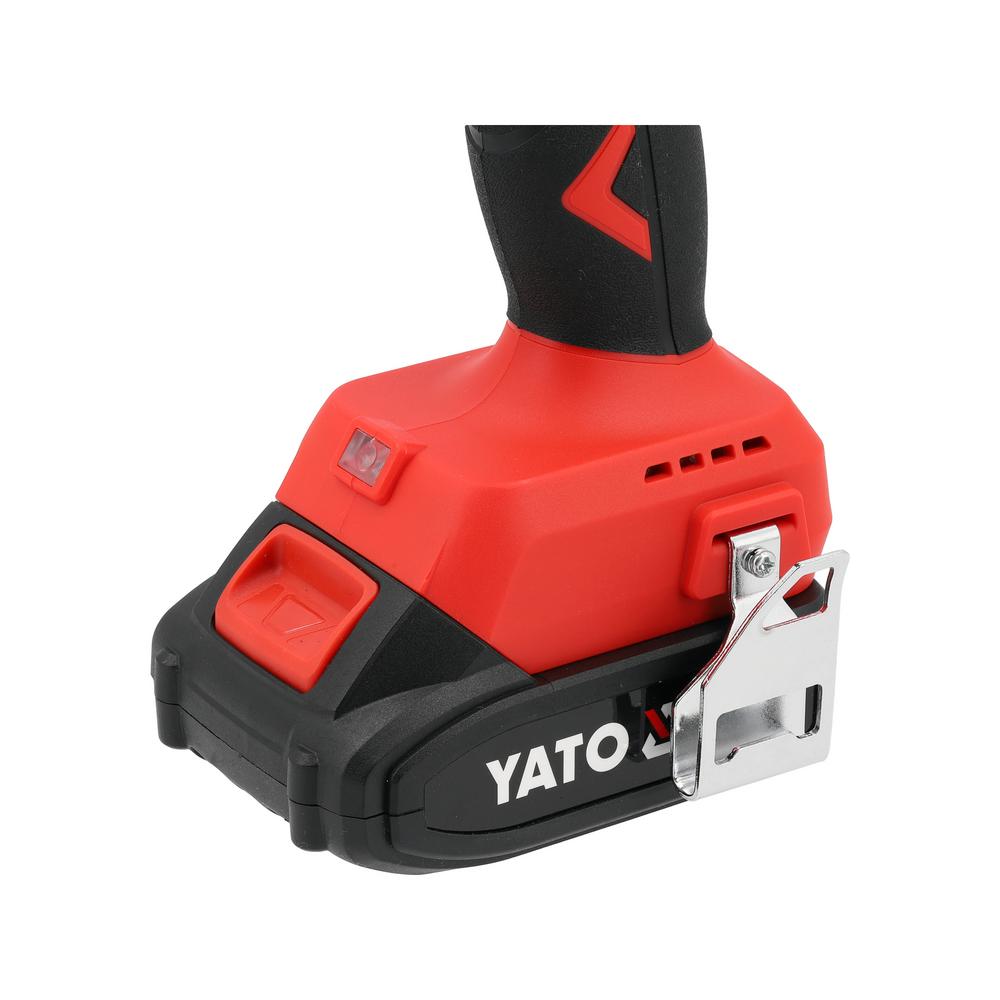

- Belt hook: Metal hook for carrying the tool on your belt.

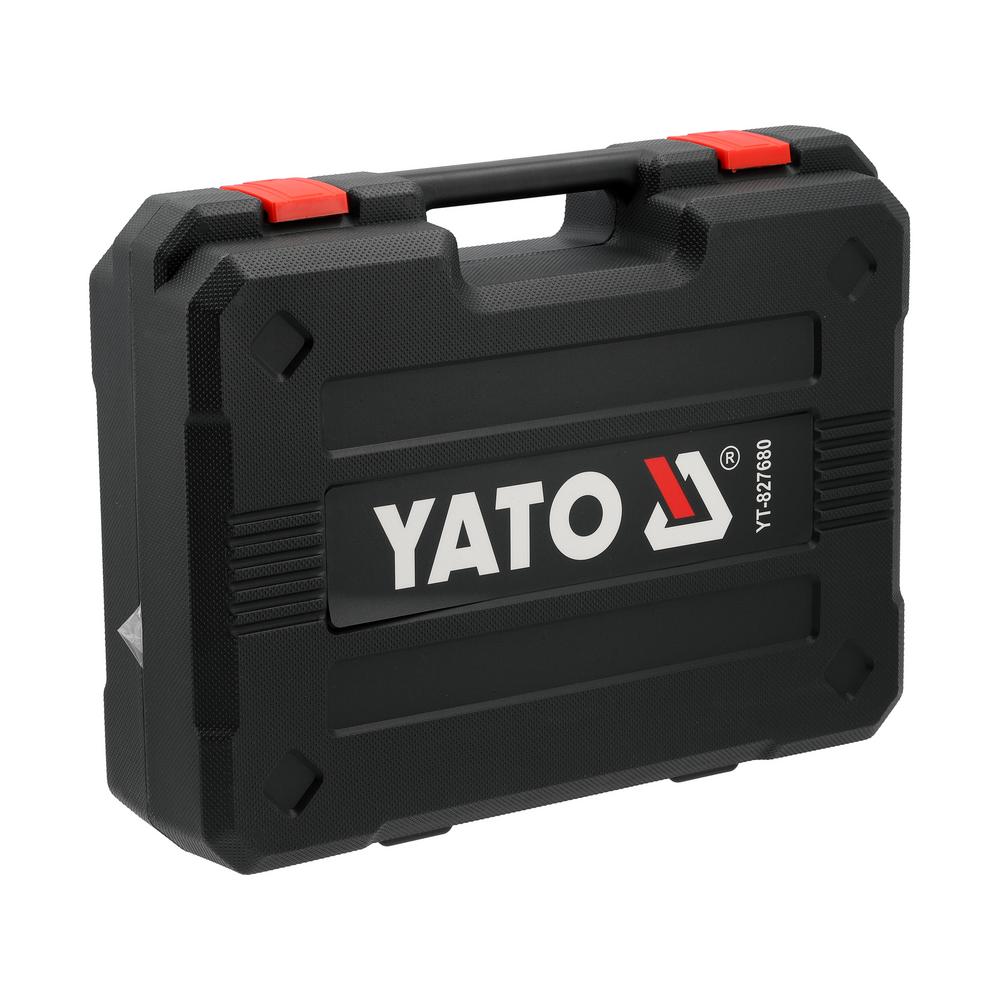

- Carrying case: Moulded case for storing the tool, batteries and charger.
- Fast charging and charge level indicator: Charging time for the 2 Ah battery about 1 h; the charge level indicator shows the remaining energy.
- Yato 18 V system: Compatible with batteries YT-828461…YT-828465 (2–9 Ah) and chargers YT-828498…YT-828504.
Technical specifications:
- Voltage: 18 V DC.
- Maximum torque: 60 Nm (1st gear) / 30 Nm (2nd gear).
- No-load speed: 0–460 / 0–2000 min⁻¹.
- Torque settings: 19 + drilling position.
- Functions: screwdriving, drilling.
- Motor: brushless.
- Impact: no.
- Maximum drilling diameter in wood: 38 mm.
- Maximum drilling diameter in steel: 13 mm.
- Maximum drilling diameter in masonry (soft brick): 12 mm.
- Chuck size: 13 mm.
- Chuck type: self-centring keyless chuck.
- Speed control: yes.
- Spindle brake: yes.
- Reversing switch: yes.
- Mode selector: yes (torque adjustment ring: screwdriving/drilling).
- Battery type: Li-Ion 18 V (Yato 18 V system).
- Battery capacity: 2000 mAh (2 Ah).
- Number of batteries in the set: 1.
- Charger in the set: yes.
- Charging time: 1 h.
- Fast charging: yes.
- Charge level indicator: yes.
- Charger input voltage: 200–240 V~, 50/60 Hz, 2 A.
- Charger output voltage and current: 21.5 V DC, 2.2 A.
- Charger insulation class: II.
- Electrical insulation class: III.
- IP rating: IPX0.
- Sound pressure level LpA: 60.7 ± 3.0 dB(A).
- Sound power level LwA: 64.2 ± 3.0 dB(A).
- Vibration ah: 1.215 ± 1.5 m/s².
- Tool weight: 0.98 kg.
User instructions for the Yato cordless drill 60 Nm 2 Ah:
Charging the battery: The battery is supplied uncharged. Place the battery in the charger and plug the charger into a socket; the charger indicator light shows the charging status. When charging is complete, unplug the charger and pull the battery out while pressing the latch. Charge only in a dry indoor area under adult supervision.
Fitting the battery: Slide a charged Yato 18 V battery into the battery slot at the bottom of the handle until the latch locks. To remove the battery, press the latch and slide the battery out. Make all adjustments and bit changes with the battery removed.
Gear and torque: Select the low speed for screwdriving and the high speed for drilling. Set the torque with the ring behind the chuck, using the marked positions only. Start with the lowest setting and increase it until the screw is tightened correctly. For drilling, turn the ring to the drill symbol; the numbered settings are not used for drilling.
Fitting drill bits and screwdriver bits: Insert a cylindrical-shank drill bit into the chuck and tighten the chuck by hand. A screwdriver bit is fitted in a bit holder or directly in the chuck. Check that the bit is straight and held firmly.
Drilling: Secure the workpiece with clamps or in a vice and mark the hole position with a centre punch. Start at low speed and press only in line with the bit. For large holes, drill a pilot hole first, and pull the bit out of the hole from time to time to let it cool.
Direction and end of work: Change the direction of rotation only when the chuck has stopped. When you finish work, set the reversing switch to the centre position, remove the battery and check the tool. Clean the housing and ventilation openings with compressed air (max. 0.3 MPa), a brush or a dry cloth without chemicals. Store the tool in a dry place with the battery removed.
Warnings:
- Read the instruction manual before use. Wear safety glasses and protective gloves and, where necessary, ear defenders and a respirator.
- Remove the battery before adjustments, bit changes, maintenance and storage.
- Hold the tool firmly: high torque can twist the tool if the bit jams. If the bit jams, release the trigger immediately.
- Hold the tool by its insulated gripping surfaces if the bit may hit hidden electrical wiring.
- Do not run a bit faster than its maximum permitted speed; long bits can bend when they spin freely.
- Do not hold small workpieces in your hand; secure them with clamps or in a vice.
- Do not change the direction of rotation while the tool is running. The temperature of the outer surfaces must not exceed 60 °C; let the tool cool down if it overheats.
- Use only Yato 18 V system batteries and chargers. Do not expose the battery to fire or to temperatures above 130 °C, do not short-circuit the battery contacts and do not use a damaged battery.
- Not for use by children. Do not use in rain or damp locations (IPX0).
Frequently asked questions (FAQ):
What does the Yato cordless drill 60 Nm 2 Ah set include? The drill, one 18 V 2 Ah Li-Ion battery, a charger and a carrying case. The battery charging time is about 1 hour.
Can the tool drill concrete? No. The tool has no hammer function. It drills tiles, soft brick and mortar with bits intended for the material, but concrete requires a hammer drill.
What size holes can the tool drill? Up to 38 mm in wood, up to 13 mm in steel and up to 12 mm in soft brick.
Which batteries fit the tool? Yato 18 V system Li-Ion batteries YT-828461 (2 Ah), YT-828462 (3 Ah), YT-828463 (4 Ah), YT-828464 (6 Ah) and YT-828465 (9 Ah).
Which gear should I use for screwdriving and drilling? 1st gear (0–460 min⁻¹, 60 Nm) is used for screwdriving and drilling metal, and 2nd gear (0–2000 min⁻¹) for drilling wood.
Recycling instructions:
Recycle the cardboard packaging and the paper instruction manual in cardboard and paper collection. The tool and charger of the Yato cordless drill 60 Nm 2 Ah set are electrical appliances: at the end of their life, take them to a WEEE collection point, not to mixed waste. Return the Li-Ion battery to battery collection or to the retailer; tape the contacts before transport. Sort the carrying case according to local waste management instructions.
