Description
Yato hedge trimmer blade 200 mm (YT-828338) is a replacement hedge trimmer blade for Yato 18 V cordless grass and hedge shears YT-828335, YT-828336, YT-828357 and YT-828358. The working length of the blade is 200 mm, and it is made of 65Mn manganese steel.

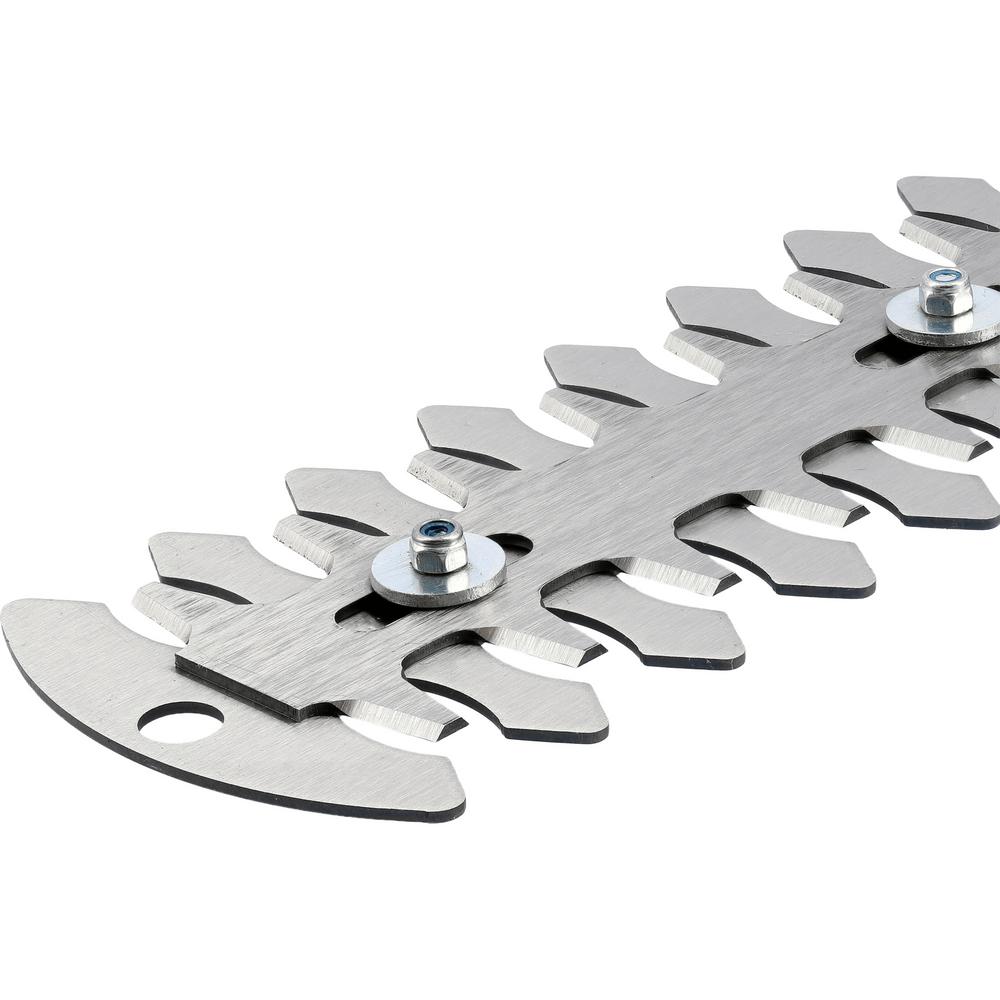

The blade is toothed on both sides, and two overlapping blade plates move against each other. The blade comes pre-assembled in a black mounting frame whose drive gear engages the drive pin of the shears. The blade locks to the body of the shears with latches, and no tools are needed to change it.
With the hedge trimmer blade, the cordless shears become a light handheld hedge trimmer for shaping small hedges, ornamental shrubs and young annual shoots. Thick, woody branches are not cut with the blade; the hedge trimmer is designed for finishing and decorative shaping.
65Mn manganese steel resists wear and deformation even with regular use. A worn or damaged blade is replaced complete with its mounting frame. The 100 mm grass shear blade (YT-828339) from the same range attaches to the same body, so the same shears can cut both lawn edges and shrubs.
Uses and suitability:
The Yato hedge trimmer blade 200 mm is a spare part and accessory for Yato cordless grass and hedge shears. It replaces a worn hedge trimmer blade or turns shears used with the grass blade into a hedge trimmer.
- Small hedges: levelling the sides and top of low hedges.
- Ornamental shrubs: shaping ball and cone forms and border plantings.
- Young shoots: cutting annual shoots and soft growth.
- Grass and edges: levelling longer grass around plantings.
Package contents:

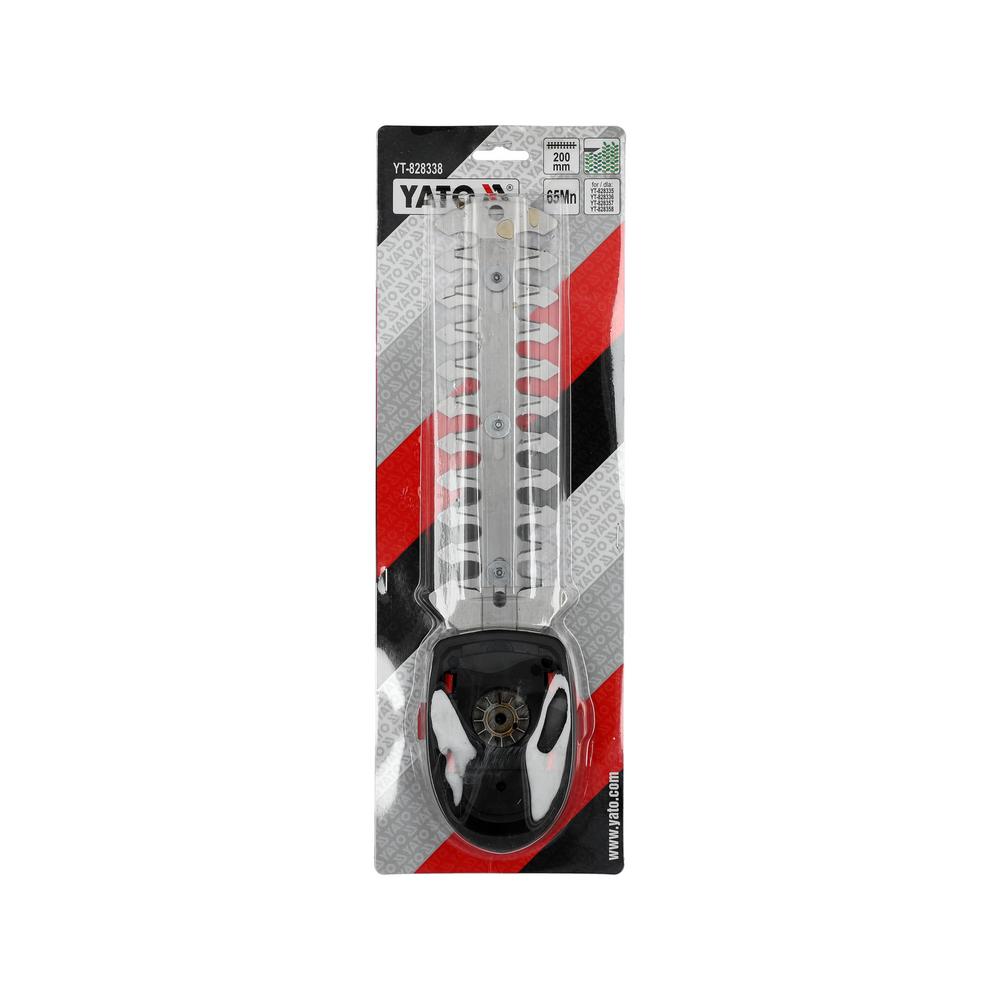

- Hedge trimmer blade 200 mm assembled in mounting frame (1 pc)
Features:
- Working length 200 mm: double-sided toothed blade for shaping shrubs.
- 65Mn manganese steel: steel that resists wear and deformation.

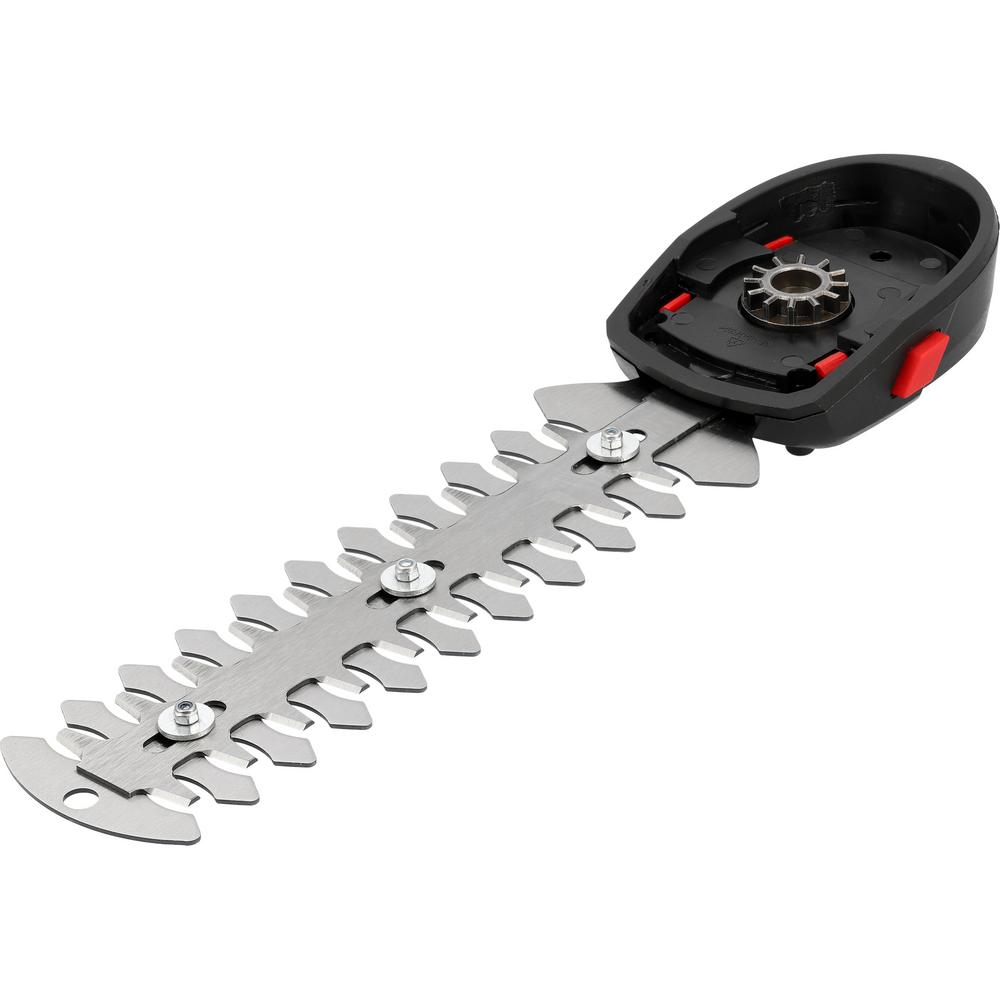

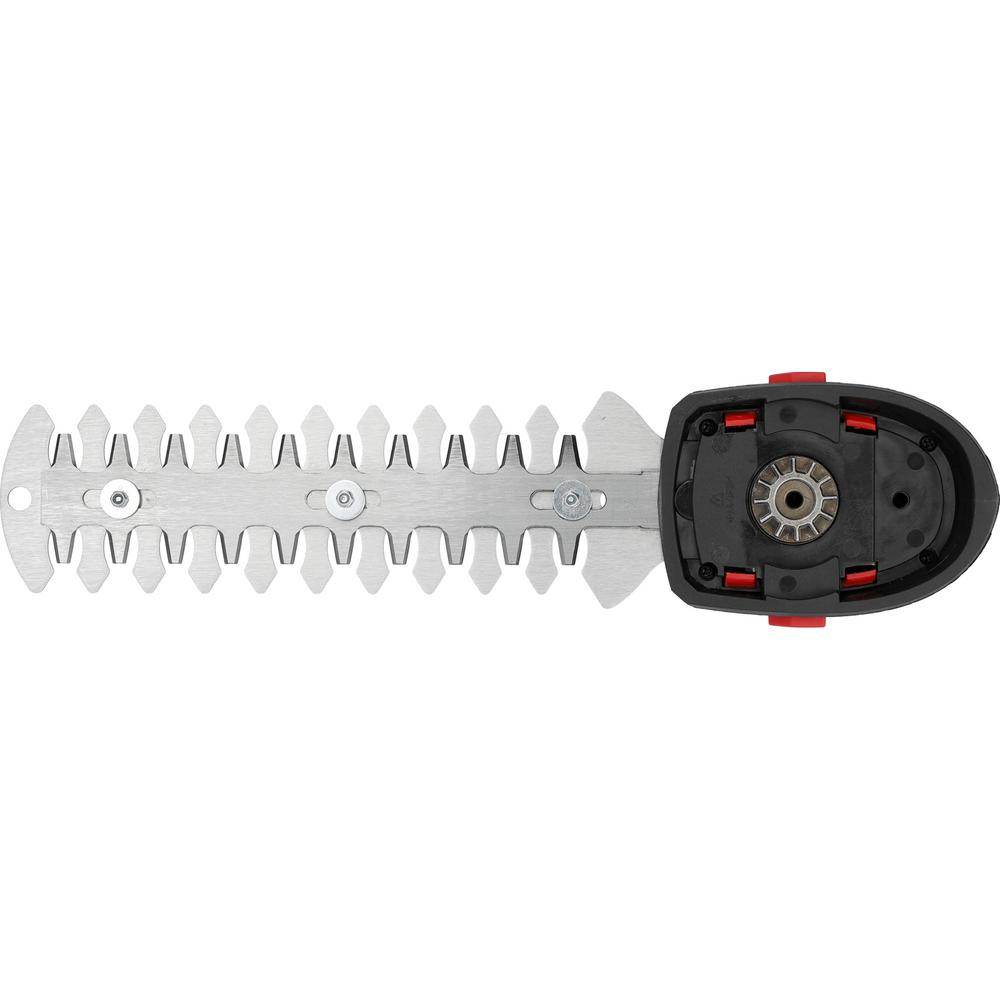

- Pre-assembled: blade plates and drive gear in the mounting frame, replaced as one part.
- Tool-free change: mounting with the locking buttons and latches of the shears.
- Compatibility: brushless YT-828335 and YT-828336 and brushed YT-828357 and YT-828358.
Technical specifications:
- Accessory type: hedge trimmer cutting head.
- Blade length: 200 mm.
- Material: 65Mn manganese steel.
- Attaching: drive gear and latch lock, no tools.
- Compatible shears: Yato YT-828335, YT-828336, YT-828357, YT-828358.
Yato hedge trimmer blade 200 mm user manual:
Before fitting: switch off the shears, make sure the switch is not pressed and remove the battery. The blade edges are sharp, so wear protective gloves.
Assembly: press both cutting head locking buttons on the shears and hold them down. Place the blade on the body of the shears so that the drive pin goes into the drive gear and the pin protruding from the body goes into the hole in the mounting frame. The mounting frame must be flush with the body of the shears on all sides. When the buttons are released, the latches lock the blade. To remove, press both buttons and pull the blade off.
Before use: check that the blade has no rust or damage, and check the shrub for foreign objects such as wires. The drive parts must be clean, and they are lubricated with gear grease.
Cutting: keep hands and feet away from the blade. Cut only thin, soft branches; if a woody branch gets stuck between the blades, release the switch immediately and carefully remove the branch. The hedge trimmer blade is not used on shears attached to the telescopic pole, as the grass blade is used with the pole.
Jamming and maintenance: if the blade stops, release the switch and clear the blockage, removing the blade if necessary. Check the blade after a blockage; a bent blade is not straightened but replaced. Clean the blade after use, protect it with a thin layer of machine oil before long-term storage and store it in the blade cover.
Warnings:
- The blade edges are sharp; wear protective gloves when fitting and changing it.
- Remove the battery from the shears before changing the blade, clearing blockages and maintenance.
- The blade keeps moving for a moment after the switch is released; do not remove cut material while the blade is moving.
- The shrub may contain hidden cables or wires; check the cutting area before work.
- Wear safety glasses, hearing protection and protective gloves.
- Do not cut in rain or thunderstorms; keep bystanders at least 5 m away.
- Do not use a damaged or self-repaired blade.
Frequently asked questions (FAQ):
Which shears does the Yato hedge trimmer blade 200 mm fit? Yato cordless grass and hedge shears YT-828335, YT-828336, YT-828357 and YT-828358.
How thick branches can the blade cut? The blade is designed for thin, soft shoots and shaping small shrubs. Thick, woody branches are cut with loppers or a hedge trimmer with a longer blade.
Are tools needed to change the blade? No. The blade is attached by pressing the two locking buttons on the shears and placing the blade in position.
Can the hedge trimmer blade be used with the telescopic pole? No. Shears attached to the telescopic pole YT-828337 use the grass blade.
Recycling instructions:
Take the worn Yato hedge trimmer blade 200 mm with its mounting frame to a recycling centre as scrap metal. Sort the cardboard packaging for cardboard recycling and the transparent plastic blister for plastic recycling.
