Description

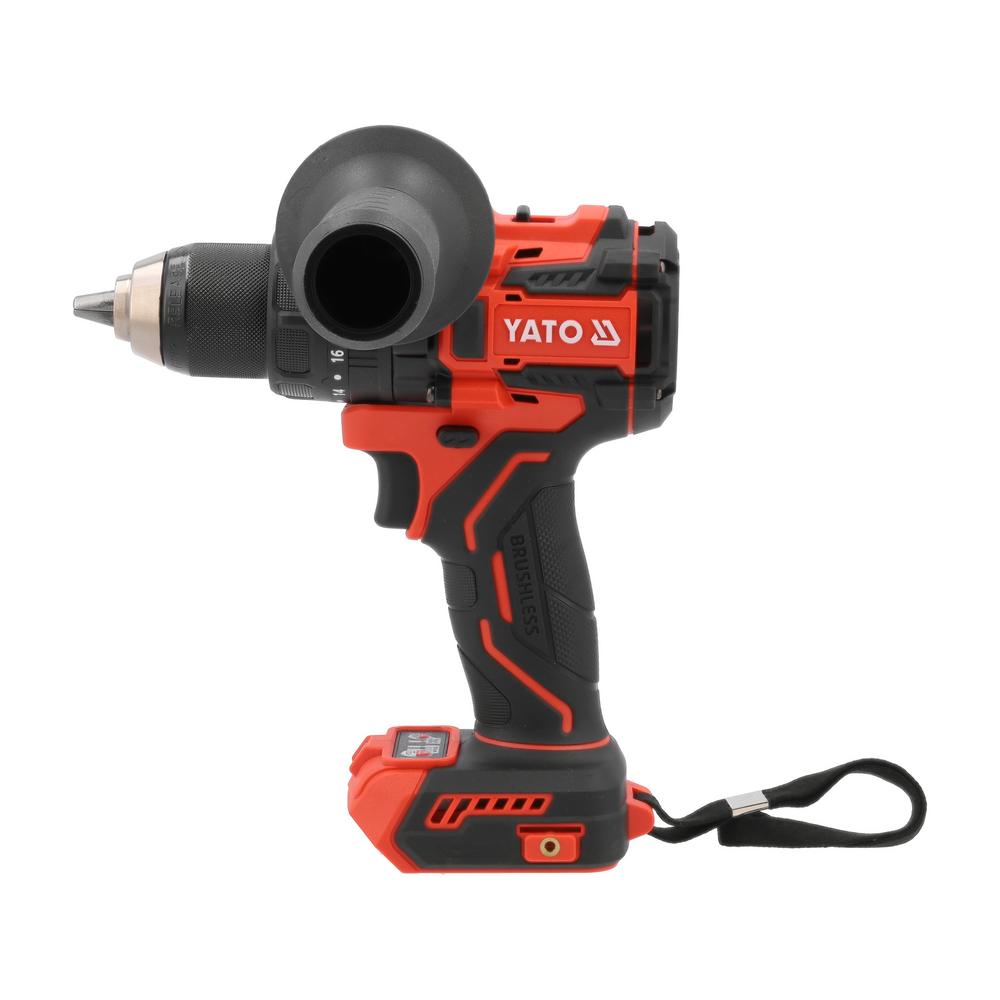

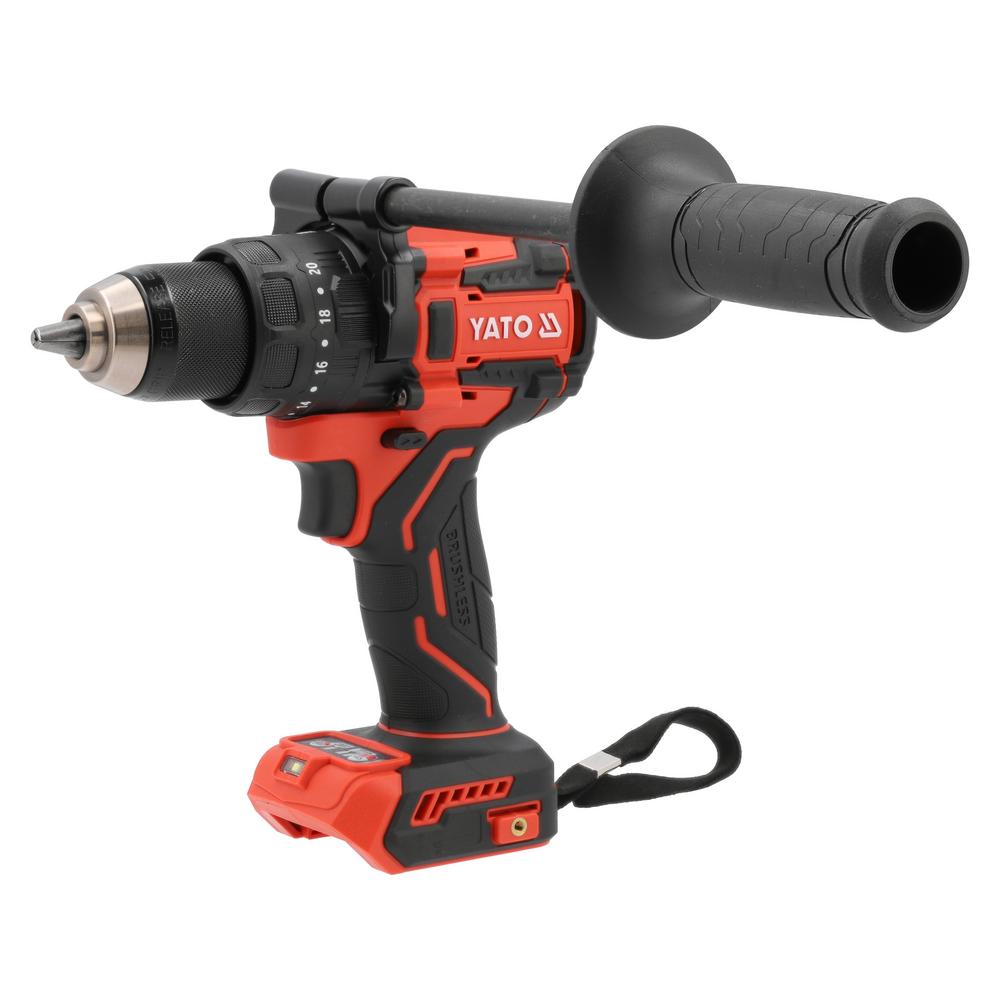

Yato cordless drill 150 Nm, body only (YT-827882) is an 18 V hammer drill/driver with a brushless motor, supplied without a battery and charger. The maximum torque is 150 Nm, and the tool works in three modes: screwing, drilling and hammer drilling. The tool fits the Yato 18 V battery system, so it is intended for users who already have batteries and a charger from the system.
In normal mode, the mechanical two-speed gearbox gives speeds of 0–400 and 0–1600 min⁻¹. TURBO mode raises them to 0–500 and 0–2000 min⁻¹, and the impact rate is correspondingly 0–6000 / 0–24,000 min⁻¹ in normal mode and 0–7500 / 0–30,000 min⁻¹ in TURBO mode. The torque is 150 Nm in first gear and 75 Nm in second gear.
The self-centring 13 mm drill chuck holds both drill bits and screwdriver bits. The maximum drilling diameter is 25 mm in wood and 13 mm in steel; concrete and hard brick are drilled in hammer drilling mode with a masonry bit. In screwing mode, the adjustable clutch limits the torque; in drilling and hammer drilling mode, the tool uses its full torque.
The control panel selects tile mode, which makes starting to drill on smooth tiles easier, anti-rotation protection, which limits sudden rotation of the tool if the bit jams, and the three-stage LED work light with delayed switch-off. The tool weighs 1.9 kg, and because of the high torque it is always used with the supplied auxiliary handle.
Uses and suitability:
The hammer drill/driver is designed for drilling holes in wood, metal, tiles and masonry and for driving and removing screws and bolts. Hammer drilling is used only for masonry, not for wood or metal.
- Fixings in concrete and brick: Plug and anchor holes in hammer drilling mode with a masonry bit; TURBO mode raises the impact rate to 30,000 min⁻¹.
- Timber construction: Holes in wood with bits up to 25 mm and driving long screws in first gear with 150 Nm torque.
- Metalwork: Holes in steel with bits up to 13 mm at low speed, with a pilot hole and coolant if necessary.
- Tiling and interior work: Tile mode reduces bit slip on glazed surfaces at the start of drilling.
- Installation and repair: Installing furniture, rails and brackets and removing screws with anticlockwise rotation.
The tool runs on Yato 18 V batteries, such as the Yato 18V Li-Ion battery, and the batteries are charged, for example, with the Yato battery charger 18V 2.2A. For lighter work, the same system offers the Yato cordless impact drill 18V 120Nm, brushless motor, body only.
Package contents:
- Yato hammer drill/driver 18 V, brushless (body only, without battery and charger)
- Auxiliary handle

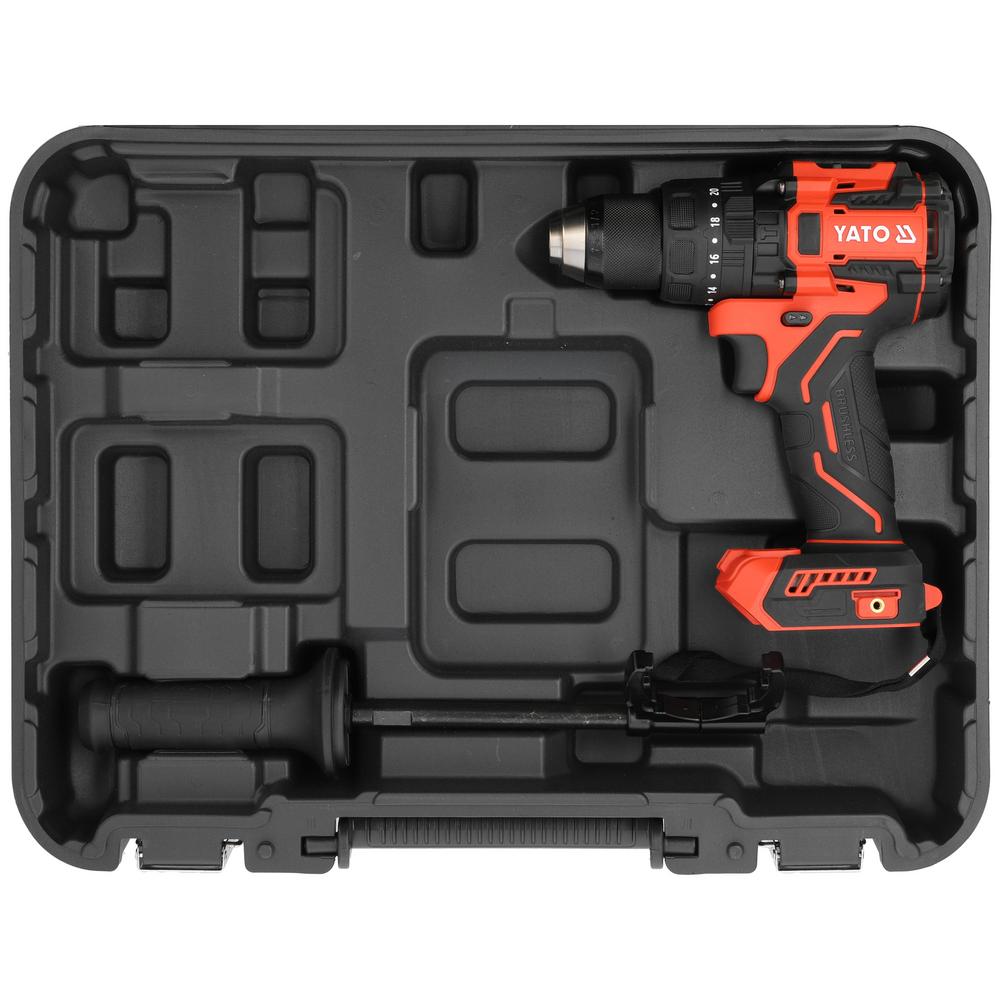

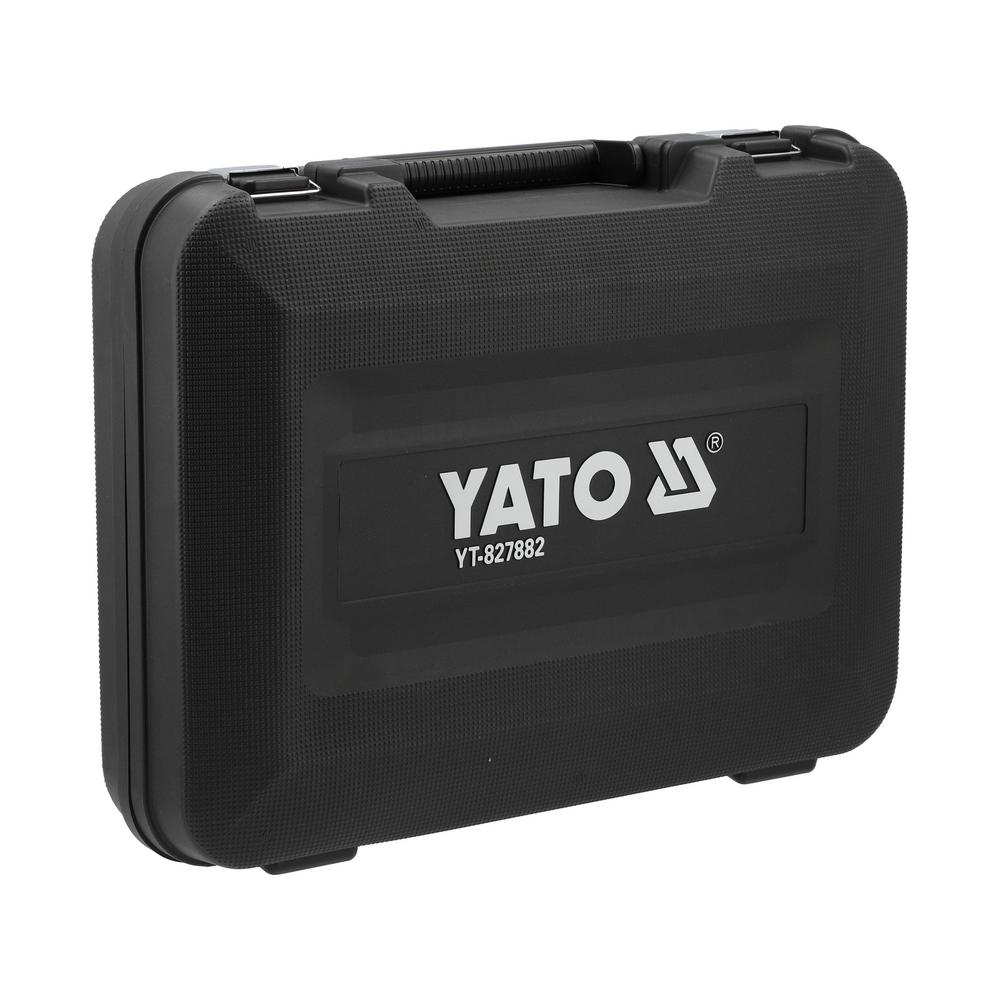

- Carry case
- Instruction manual
Features:
- Brushless motor: No carbon brush wear; better efficiency.
- 150 Nm torque: 150 Nm in first gear and 75 Nm in second gear.
- Two mechanical gears: 0–400 / 0–1600 min⁻¹ in normal mode; the gear is changed after the chuck has stopped.
- TURBO mode: Full motor speed, 0–500 / 0–2000 min⁻¹ and impact rate up to 30,000 min⁻¹.
- Three operating modes: Screwing with adjustable torque, drilling without impact and hammer drilling.
- Tile mode: Makes starting to drill on smooth surfaces easier and reduces bit slip.
- Anti-rotation protection: Limits sudden rotation of the tool if the bit jams; an indicator light shows the function.
- LED work light: Dim, bright or off; delayed switch-off of the light is activated on the control panel.
- Self-centring 13 mm chuck: For drill bits and screwdriver bits, tightened by hand.

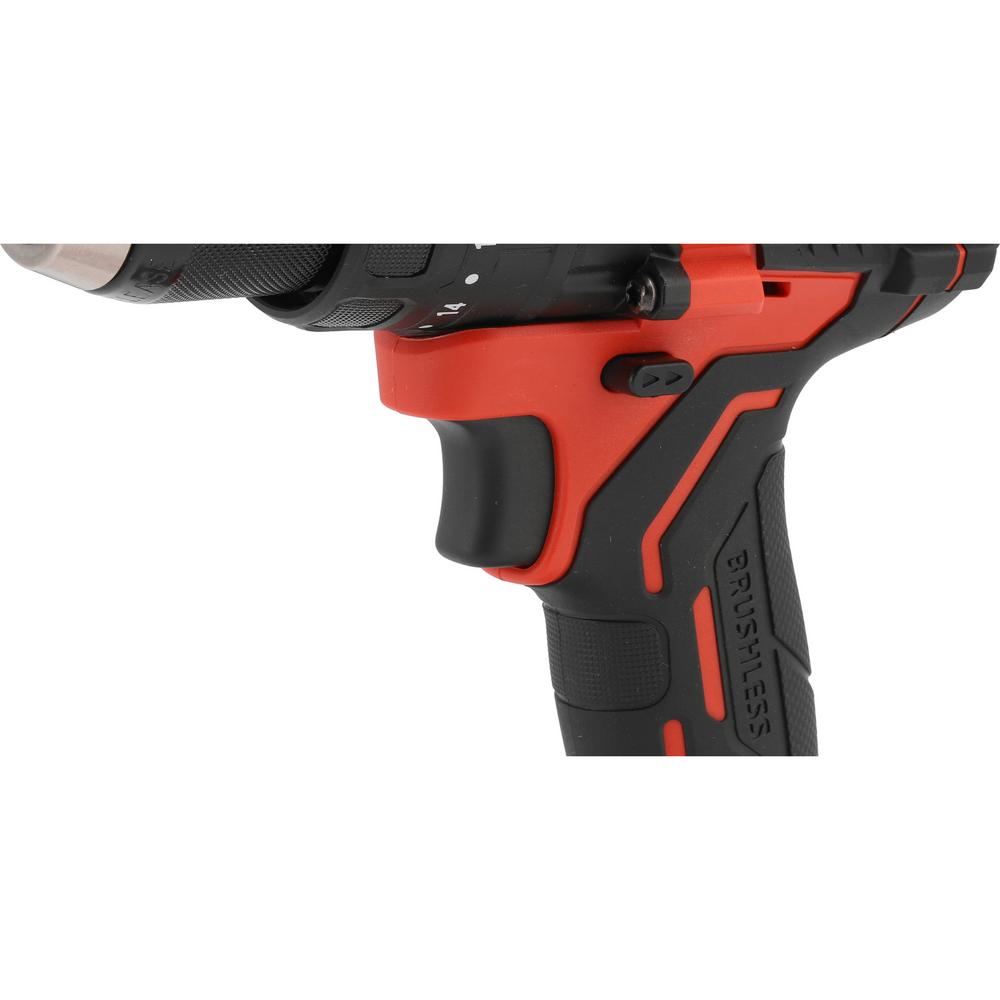

- Electronic speed control and spindle brake: The speed adjusts by pressing the trigger; the chuck stops when the trigger is released.

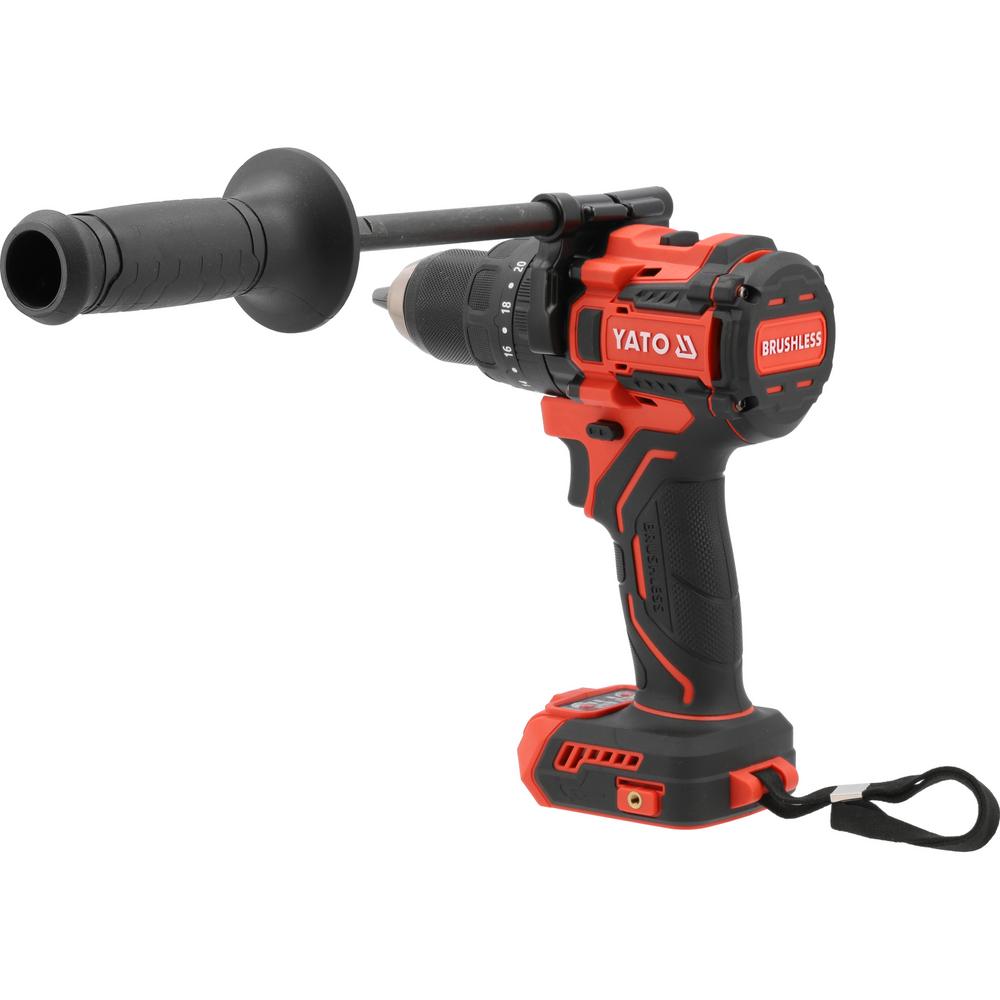

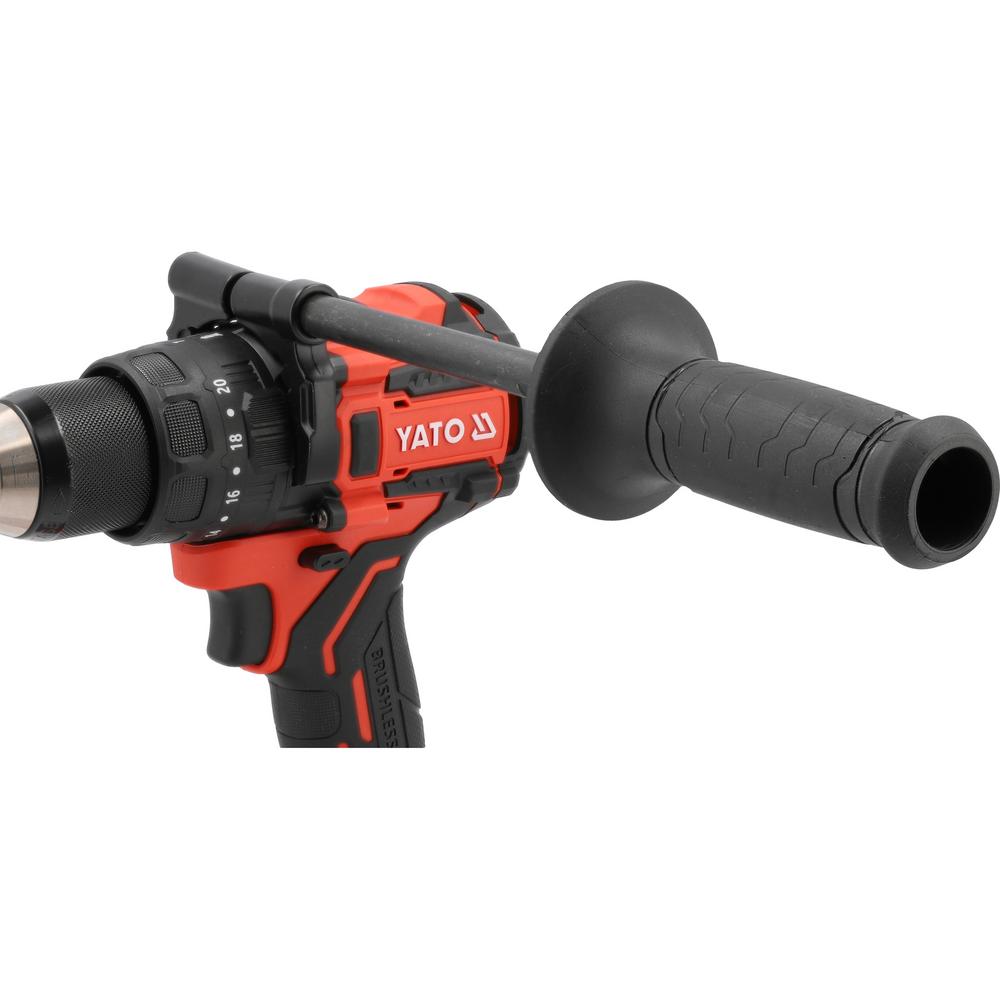

- Auxiliary handle: Screws into the body; mandatory because of the high torque.
- Yato 18 V system: Batteries YT-828461 (2 Ah), YT-828462 (3 Ah), YT-828463 (4 Ah), YT-828464 (6 Ah) and YT-828465 (9 Ah).
Technical specifications:
- Voltage: 18 V DC.
- Maximum torque: 150 Nm (1st gear), 75 Nm (2nd gear).
- Speed, normal mode: 0–400 / 0–1600 min⁻¹.
- Speed, TURBO mode: 0–500 / 0–2000 min⁻¹.
- Impact rate, normal mode: 0–6000 / 0–24,000 min⁻¹.
- Impact rate, TURBO mode: 0–7500 / 0–30,000 min⁻¹.
- Functions: screwdriving, drilling, hammer drilling.
- Motor: brushless.
- Impact: yes.
- Maximum drilling diameter in wood: 25 mm.
- Maximum drilling diameter in steel: 13 mm.
- Chuck size: 13 mm.
- Chuck type: self-centring.
- Speed control: yes.
- Electronic speed control: yes.
- Spindle brake: yes.
- Reversing switch: yes.
- Mode selector: yes.
- Work light: yes (LED, 3 modes).
- Battery type: Li-Ion, 18 V.
- Batteries in the set: no (body only).
- Charger in the set: no.
- Electrical insulation class: III.
- Sound pressure level LpA: 80.8 ± 5.0 dB(A).
- Sound power level LwA: 88.8 ± 5.0 dB(A).
- Vibration ah (hammer drilling / drilling without impact): 11.127 ± 1.5 / 1.187 ± 1.5 m/s².
- Tool weight: 1.9 kg.
- Maximum permitted surface temperature: 60 °C.
- Standards: EN 62841-1, EN 62841-2-1, EN IEC 55014-1, EN IEC 55014-2.
User instructions for the Yato cordless drill 150 Nm, body only:

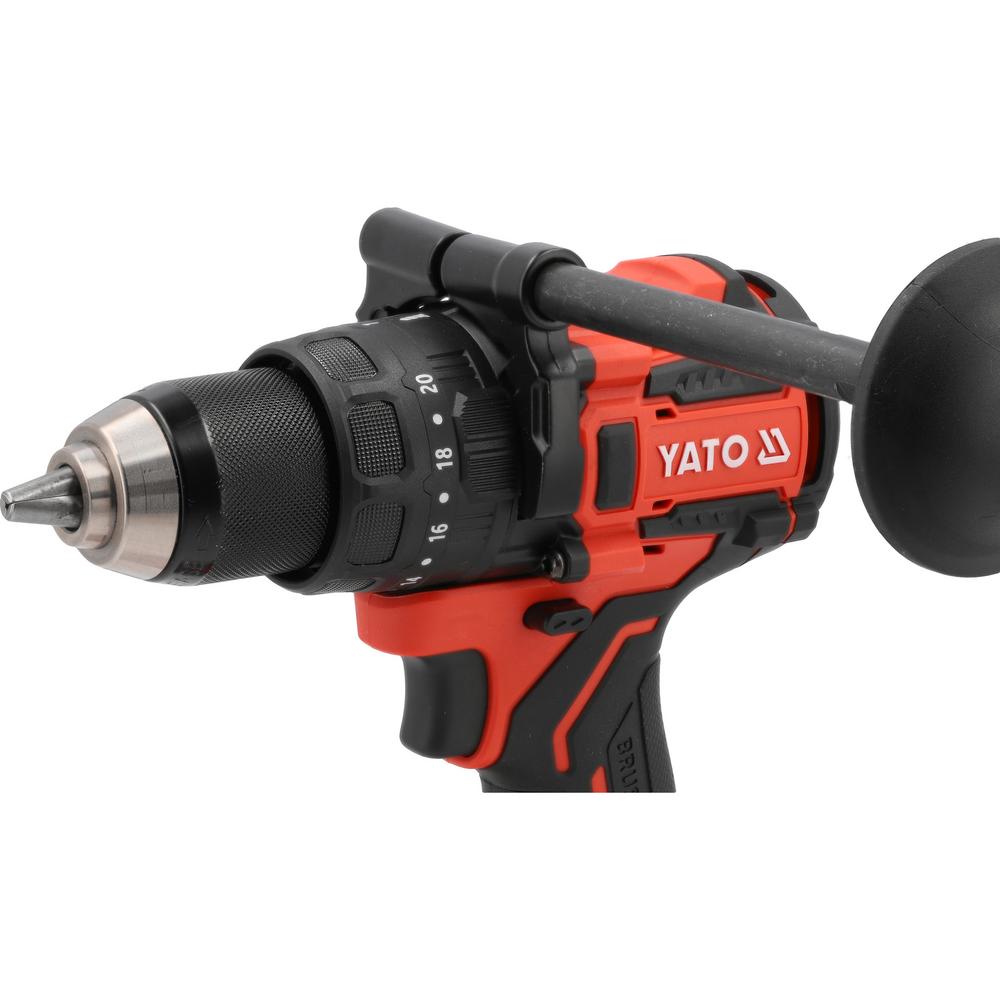

Battery and auxiliary handle: Slide a Yato 18 V battery into the battery slot until the latches lock. Screw the threaded end of the auxiliary handle into the hole in the body and tighten the handle fully.
Fitting the bit: Remove the battery. Open the chuck by turning it by hand, push the bit or bit holder in all the way and tighten the chuck by hand.

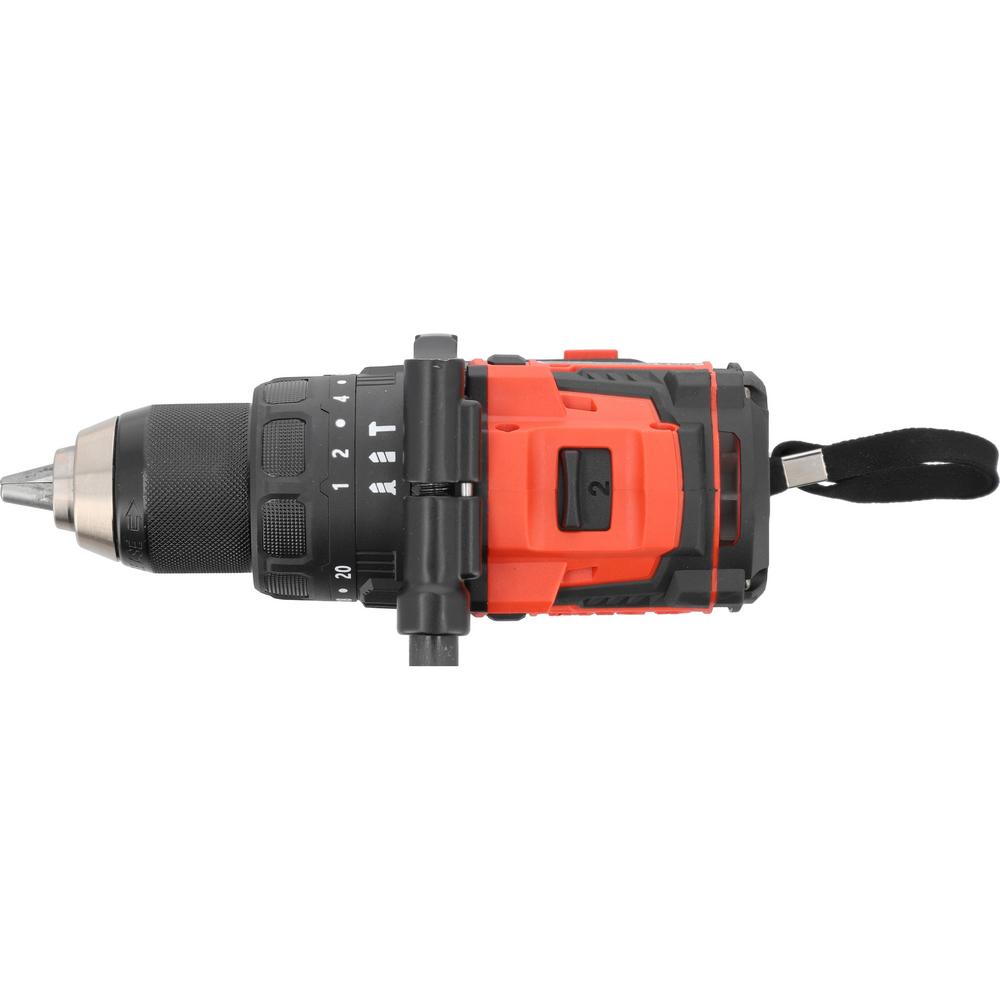

Selecting the mode, gear and torque: Set the mode selector to the screw, drill bit or hammer symbol. First gear is for screwing, second for drilling. When screwing, start with a low torque setting and increase it until the tightening is correct; the numbered settings are not used for drilling.

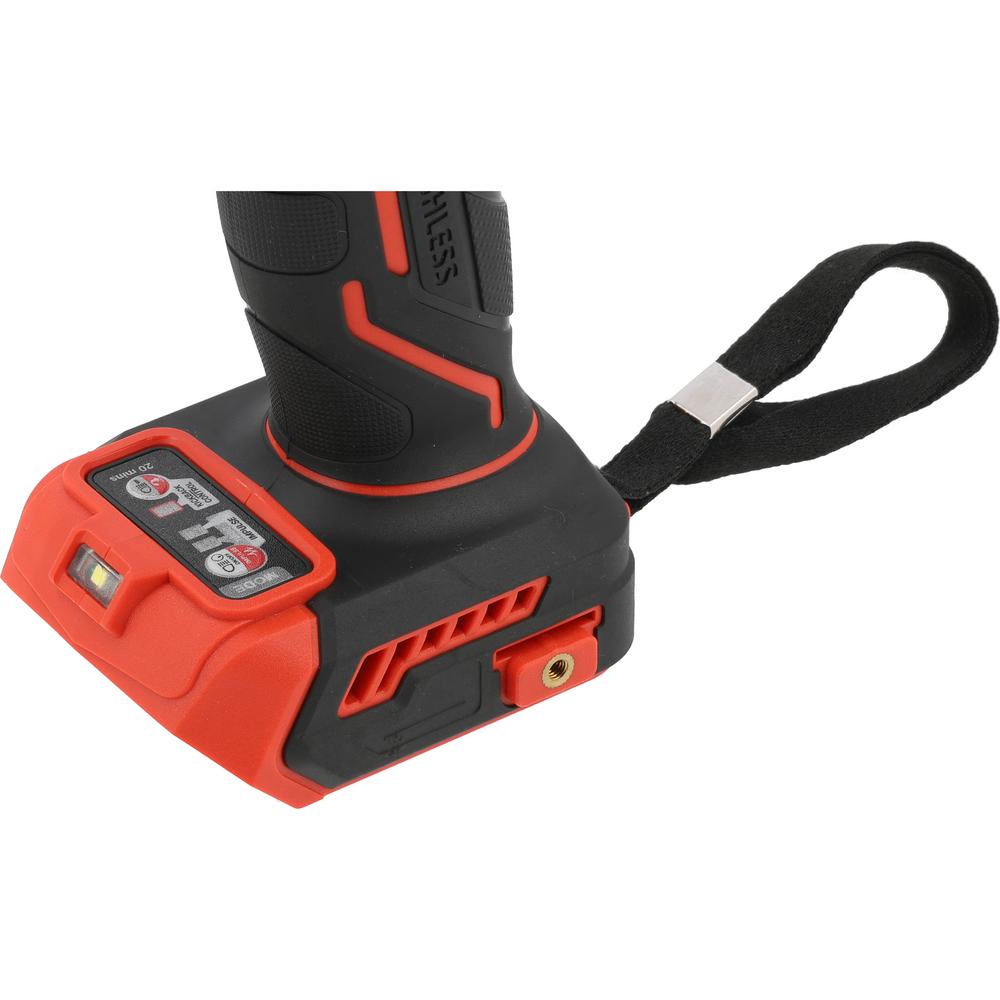

Control panel: Button (a) switches between TURBO and tile mode, and a long press changes the work light mode. Button (b) activates the anti-rotation function; with the work light on, pressing for about a second activates delayed switch-off of the light.
Drilling: Secure the workpiece and mark the drilling point. Drill wood and metal without impact and masonry with hammer drilling. For large holes, drill a pilot hole first, hold the tool with both hands in line with the bit and pull the bit out from time to time to remove dust. Change the direction of rotation and the gear only when the tool has stopped.
Maintenance: Remove the battery and clean the body and ventilation openings with compressed air (max. 0.3 MPa), a brush or a dry cloth. Store the tool in a dry place out of the reach of children.
Warnings:
- Read the user manual before use. Wear safety glasses, hearing protection and protective gloves, especially when hammer drilling.
- Always use a correctly fitted auxiliary handle: the 150 Nm torque can twist the tool suddenly if the bit jams.
- Remove the battery before changing the bit, making adjustments and maintenance.
- Hold the drill by its insulated gripping surfaces if the bit may hit hidden electrical wiring.
- Start drilling at low speed with the bit tip against the workpiece; do not exceed the maximum permitted speed of the bit.
- Do not use the tool to power attachments.
- The outer surface temperature must not exceed 60 °C. Take breaks because of vibration exposure.
- Use only Yato 18 V batteries YT-828461…YT-828465 and charge them with Yato chargers YT-828498…YT-828504.
- Not for use by children. Do not expose the tool to rain or moisture.
Frequently asked questions (FAQ):
Are a battery and charger included with the Yato cordless drill 150 Nm body-only model? No. The body-only model includes the tool, an auxiliary handle and a carrying bag; the battery and charger are purchased separately from the Yato 18 V system.
Which batteries fit the drill? Yato 18 V Li-Ion batteries YT-828461 (2 Ah), YT-828462 (3 Ah), YT-828463 (4 Ah), YT-828464 (6 Ah) and YT-828465 (9 Ah).
What does TURBO mode do? It activates the full motor speed: the speed rises to 0–500 / 0–2000 min⁻¹ and the impact rate to 30,000 min⁻¹, which speeds up drilling in concrete.
Can the drill drill concrete? Yes, in hammer drilling mode with a bit intended for hammer drilling; guide the tool straight in line with the hole with even pressure.
Why is the auxiliary handle mandatory? The high torque can twist the tool if the bit jams; the auxiliary handle and anti-rotation protection reduce the risk of losing control.
Recycling instructions:
Recycle the cardboard packaging and paper user manual in cardboard and paper collection, and the plastic carrying bag in plastic collection or according to local instructions. The Yato cordless drill 150 Nm, body only, is an electrical appliance: take the tool to a WEEE collection point at the end of its life, not to mixed waste. Return Li-Ion batteries used with the tool to battery collection or to the retailer; tape the contacts before transport.
