Description

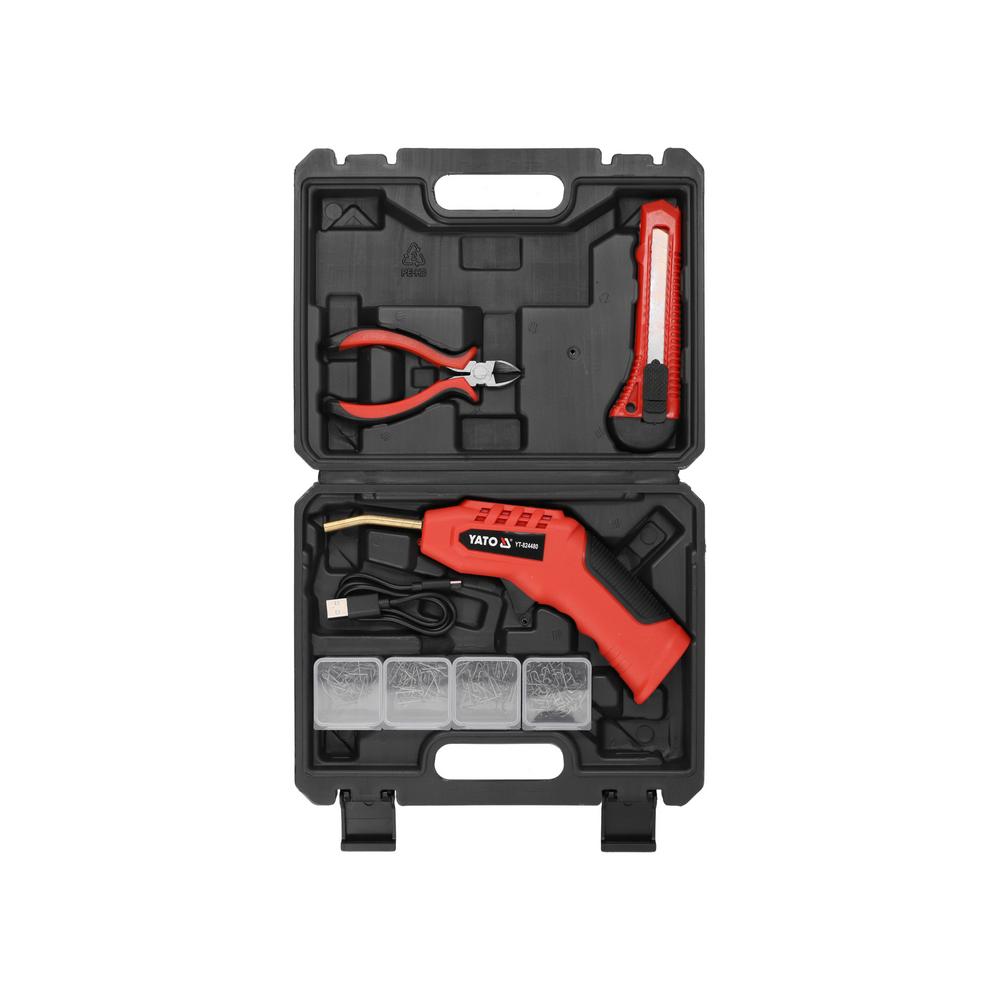

Yato plastic welder 3.7V (YT-824480) is a cordless hot stapler for repairing cracks and fractures in plastic parts. The unit has a built-in 3.7 V 2000 mAh Li-ion battery, which is charged via the USB-Cport. The set is supplied in a case and includes 200 staples in four shapes, side cutters, a snap-off blade knife and a charging cable.
The welder heats the metal staple fitted in the heating holder in about 5 seconds, and the temperature is selected from three levels: 400 °C (L), 500 °C (M) and 600 °C (H). The hot staple is melted into the plastic across the crack, binding the edges together and reinforcing the repair. After cooling, the excess part of the staple is cut off, and the surface can be sanded and filled.
The power of the unit is 40 W. According to the manufacturer, one charge heats at least 60 staples at the highest temperature level. Charging takes about 70 minutes from a 5 V / 2 A USB power source, and the indicator lights on the control panel show the charge level and the selected temperature level.

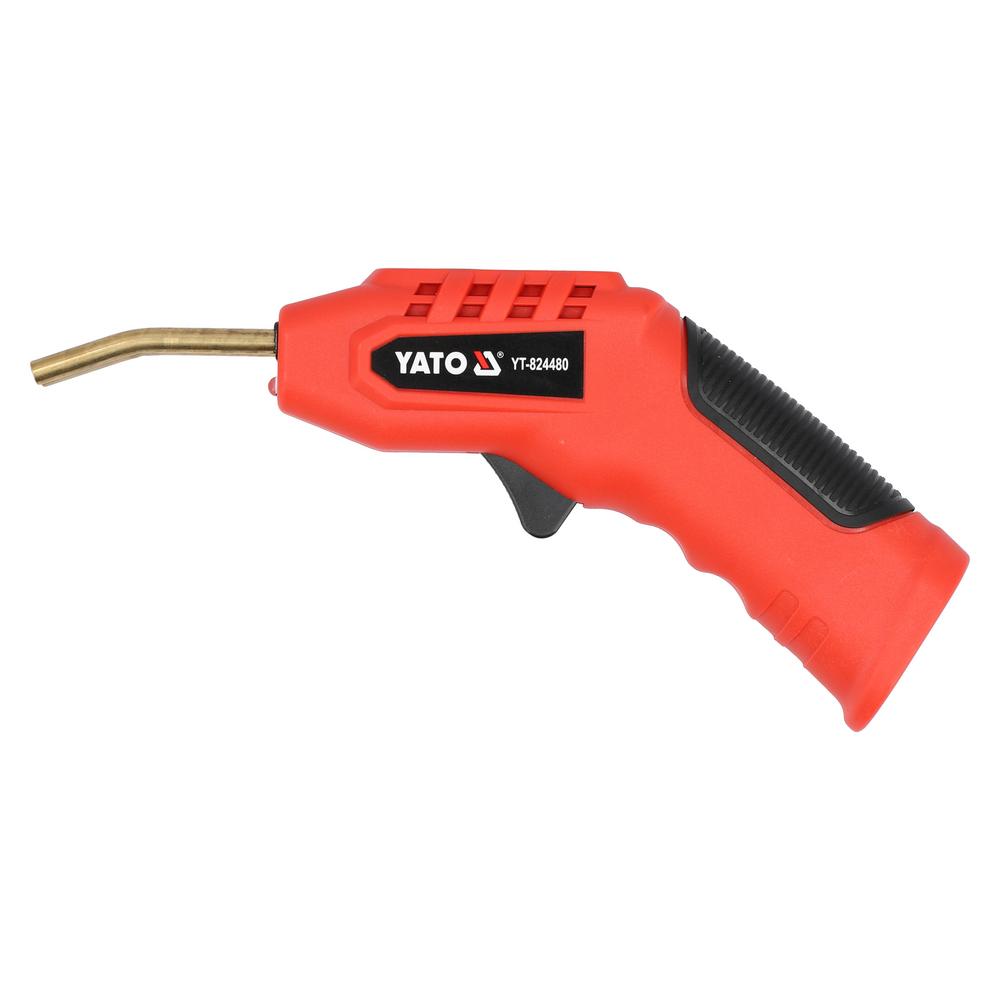

The lightweight body weighs about 0.2 kg, and it has a separate power switch and heating switch, work area lighting and overload protection. The control panel uses indicator lights to signal low battery, an incorrectly fitted staple, a battery temperature above 60 °Cand exceeding the heating time. The insulation class is III.
Uses and suitability:
The Yato plastic welder 3.7V is designed for repairing cracks in thermoplastic parts with shaped staples where mains power is not available. To finish the repair, you can use, for example, the Yato cordless random orbital sander 18V 125 mm, body only, and for thermoforming plastic, the Yato digital soldering and hot air station 100–480C.
- Plastic vehicle parts: Cracks in bumpers, wings, brackets and trim panels are stapled from the inside, after which the outer surface can be sanded, filled and painted.
- Temperature selection by material: Thin and soft plastics are repaired at a low level, thick and hard parts at a higher level.
- Corners and curved cracks: Corner staples (a, b) suit outside and inside corners, shape c small straight cracks and shape d large or curved cracks.
- Plastic housings, boxes and furniture parts: The cordless, lightweight unit also suits tight and hard-to-reach spots.

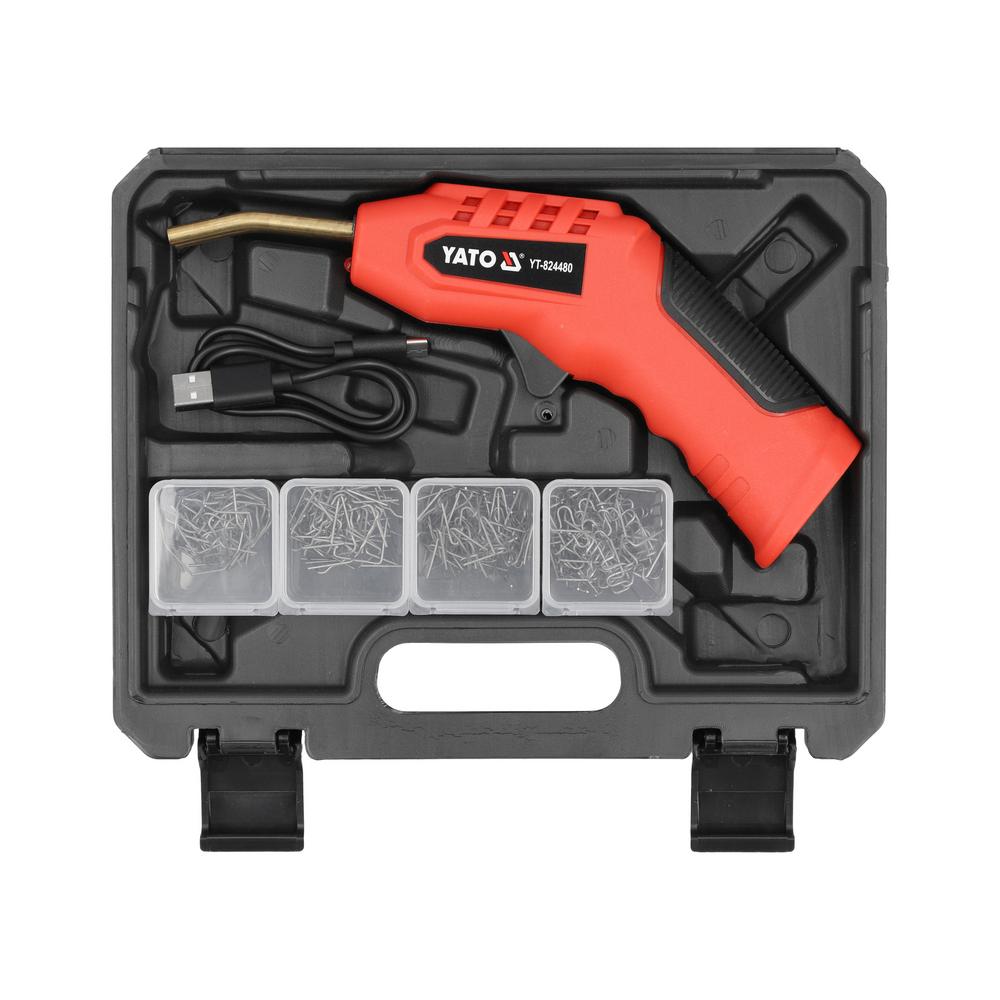

Package contents:
- Plastic welder with built-in 3.7 V 2000 mAh Li-ion battery
- Charging cable USB-A to USB-C
- Staples 200 pcs (4 shapes × 50 pcs)

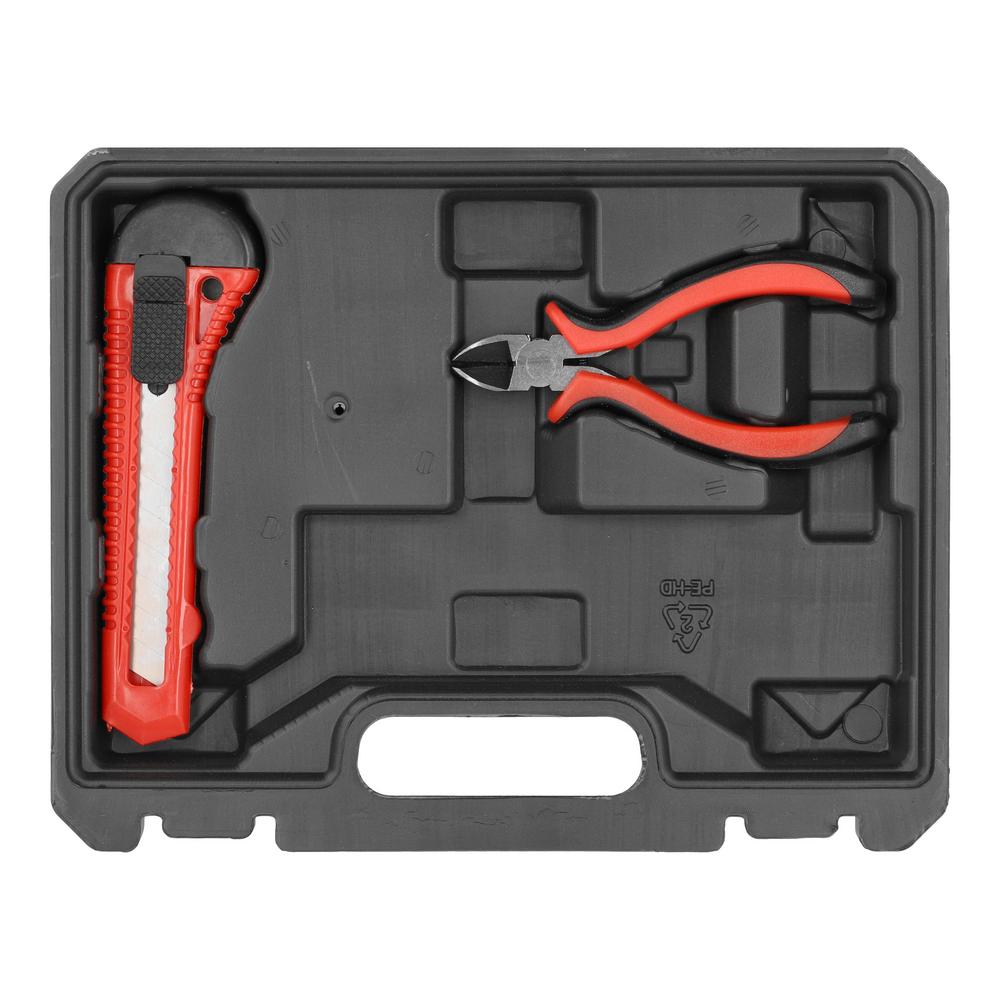

- Side cutters
- Snap-off blade knife

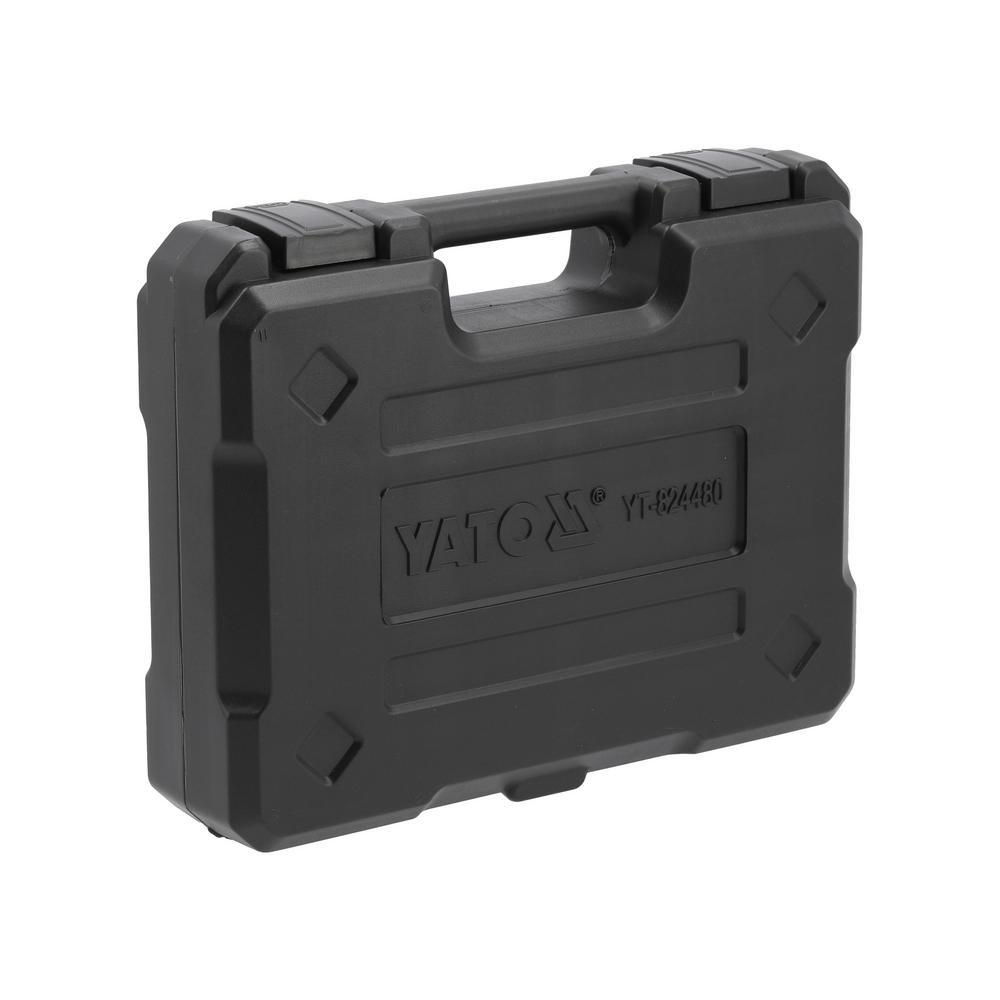

- Carrying case
The package does not include a USB mains power supply; any standard USB charger rated at least 2 A can be used for charging.
Features:
- Three temperature levels: 400, 500 and 600 °C are selected with the power switch during heating.
- Fast heating: The staple heats up in about 5 seconds.
- USB-C charging: The built-in 2000 mAh battery charges in about 70 minutes from a 5 V / 2 A power source.

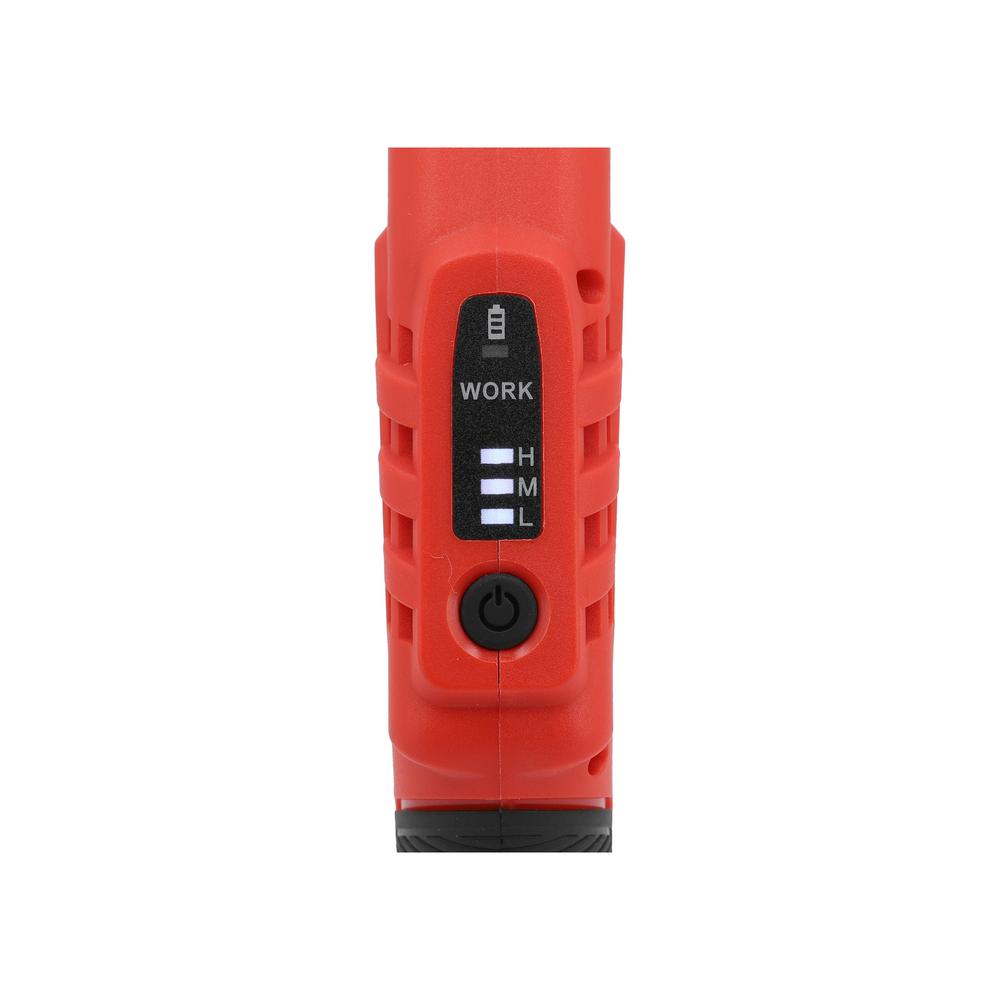

- Control panel: Indicator lights L/M/H show the temperature level, charging progress and error states.
- Error indications: Low charge, incorrectly fitted staple, battery overheating (above 60 °C) and heating time limit.
- Work area lighting: Light on the repair area.
- Overload protection: After the protection trips, work continues once the unit has cooled down.
- Charge level indicator: The battery charge level is shown on the control panel.
- Additional staples: Compatible staple set YT-824490.
Technical specifications:
- Power: 40 W
- Maximum operating temperature: 400 °C (I / L), 500 °C (II / M), 600 °C (III / H)
- Heating time: 5 s
- Battery type: Li-Ion
- Battery voltage: 3.7 V DC
- Battery capacity: 2000 mAh
- Battery energy: 7.4 Wh
- Batteries: 1 (built-in)
- Charger / charging port: USB Type-C
- Charging voltage and current: 5 V DC, 2 A
- Charging time: 70 min
- Charge level indicator: yes
- Work area lighting: yes
- Switch: yes (power switch and heating switch)
- Staples per charge: at least 60 (highest temperature level)
- Storage temperature: 10–38 °C
- Operating conditions: +10…+38 °C, relative humidity below 70%
- Protection class: III
- Staple insertion depth in holder: 2–3 mm
- Battery temperature limit: 60 °C
- Application: repairing cracks and damage in plastic parts with shaped staples
- Compatible staple set: YT-824490
Yato plastic welder 3.7V user instructions:
Read the original user manual before use. Always change staples with the unit switched off and cooled down.

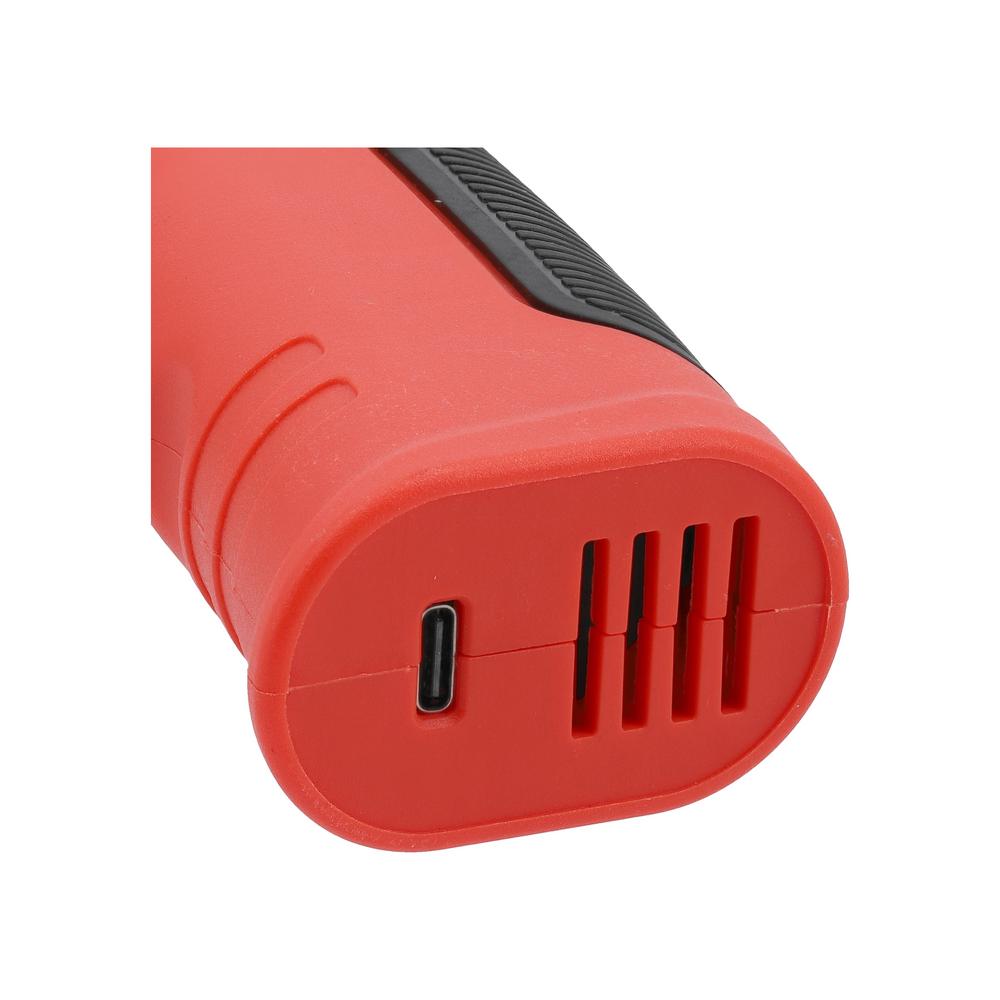

- Charging: Charge the battery before first use. Connect the cable to the USB-C port on the unit and to a USB charger rated at least 2 A. The battery symbol is red while charging and green when full; disconnect the cable as soon as charging is complete. The unit cannot be used while charging.

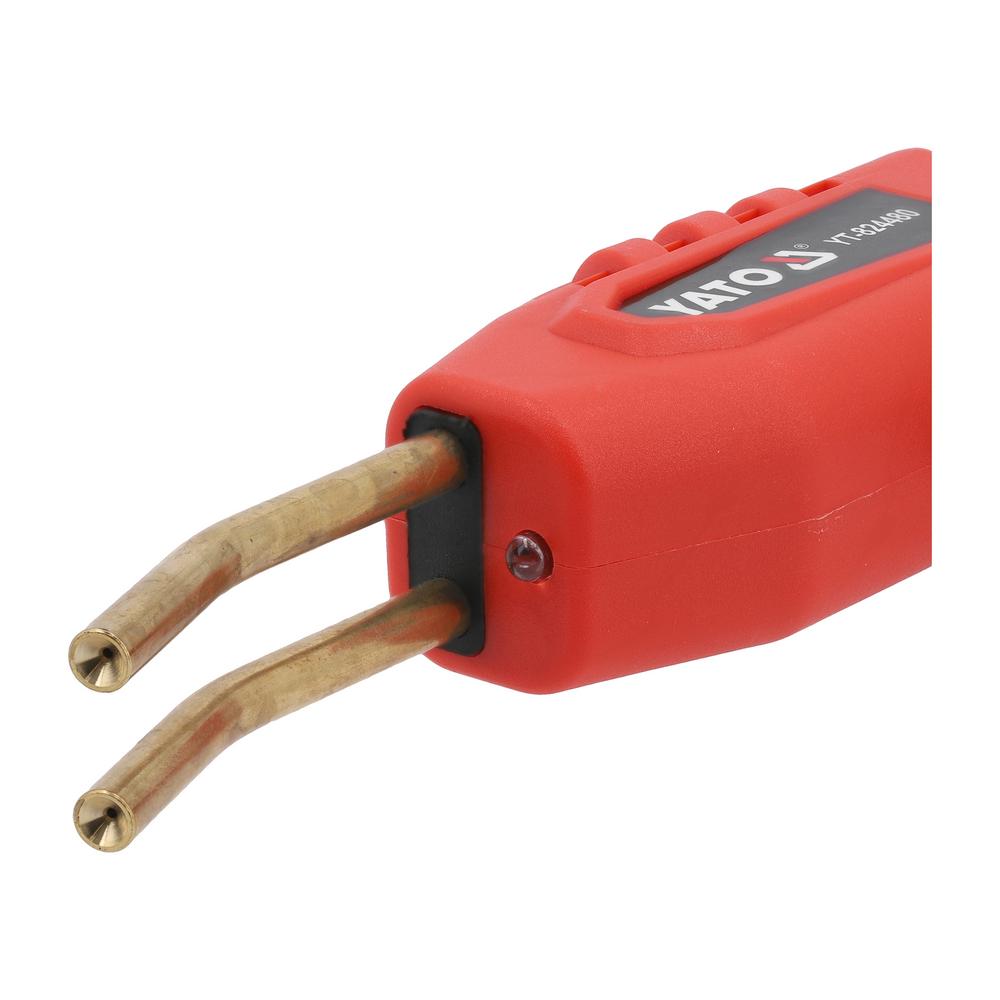

- Choosing and fitting the staple: Choose shape a–d according to the crack and push the ends of the staple into the holes of the heating holder to a depth of about 2–3 mm.
- Starting: Press the power switch for about 2 seconds; the indicator lights show the selected temperature level.
- Heating and level selection: Press the heating switch all the way down. The level is changed by briefly pressing the power switch during heating.
- Stapling: Wait about 5 seconds, press the hot staple into the plastic across the crack to the required depth and release the heating switch.
- Removal and finishing: Wait 5–10 seconds and pull the welder away slowly. Once the plastic has cooled, cut off the excess part of the staple, remove extruded plastic with the knife and smooth the surface.
- Switching off and maintenance: Switch off the unit by briefly pressing the power switch and let it cool down. Clean the housing and ventilation openings with a dry cloth, a brush or compressed air at max. 0.3 MPa.
Warnings:
- Burns: The staple, heating holder, metal parts and the plastic being repaired are hot during and after use; wear heat-resistant gloves.
- Fire hazard: Do not use the unit near flammable materials or in an explosive environment.
- Ventilation: Work in a well-ventilated area; do not cover the air intake openings.
- Moisture: Not for rain, bathrooms or near water.
- Battery overheating: When the M indicator light flashes, the battery temperature is above 60 °C; stop work and let the unit cool down.
- Charging: Do not leave a charged unit on the charger for a long time; if an error indication appears (three indicator lights flash during charging), stop charging and contact an authorised service centre.
- Children: Children must not use or play with the unit.
- Battery: Do not short-circuit the battery and do not use the unit with a damaged battery.
Frequently asked questions (FAQ):
What does the Yato plastic welder 3.7V set include?
The welder with a built-in 2000 mAh battery, a USB-A to USB-C charging cable, 200 staples in four shapes, side cutters, a snap-off blade knife and a carrying case.
How is the welder charged?
Via the USB-C port from a standard USB charger rated at least 2 A. Charging takes about 70 minutes.
Which temperature level should be used?
The unit has three levels: 400 °C (L), 500 °C (M) and 600 °C (H). The level is chosen according to the thickness and type of plastic.
How many staples can be heated on one charge?
According to the manufacturer, at least 60 staples at the highest temperature level.
What do the flashing indicator lights mean?
Six flashes of all level lights: battery almost empty. L flashes: check the staple fitting. M flashes: battery above 60 °C. H flashes: the heating time limit was exceeded and heating stopped.
Recycling instructions:
The Yato plastic welder 3.7V is electrical and electronic equipment (crossed-out wheeled bin symbol) with a built-in Li-ion battery. At the end of its life, take the device to WEEE collection, not to mixed waste. A damaged battery must not be transported normally. Sort the cardboard packaging into cardboard collection, and the plastic case and plastic parts into plastic collection.
